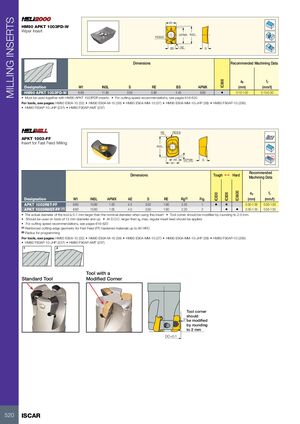

MILLING INSERTS W1 HM90 APKT 1003PD-W W Wiper Insert APMX INSL RE820 M9 0 W BS RE S Dimensions Recommended Machining Data ap fz IC908 Designation W1 INSL S RE BS APMX (mm) (mm/t) HM90 APKT 1003PD-W 6.69 11.65 3.55 0.80 4.40 9.80 • 0.10-1.00 0.15-0.30 • Must be used together with HM90 APKT 1003PDR inserts • For cutting speed recommendations, see pages 616-620 For tools, see pages: HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) RE RE9.9 APKT 1003-FF Insert for Fast Feed Milling INSL Rd° AE APMX S W1 Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5600 IC830 IC808 Designation W1 INSL APMX AE S RE Rg(2) Fig. (mm) (mm/t) APKT 1003R8T-FF 6.60 10.80 1.00 4.5 3.50 1.90 2.20 1 • • 0.50-1.00 0.50-1.50 APKT 1003R8GT-FF (1) 6.60 10.80 1.00 4.5 3.50 1.90 2.20 2 • • 0.50-1.00 0.50-1.50 • The actual diameter of the tool is 0.1 mm larger than the nominal diameter when using this insert • Tool corner should be modified by rounding to 2.0 mm. • Should be used on tools of 12 mm diameter and up • At D.O.C. larger than ap max, regular insert feed should be applied • For cutting speed recommendations, see pages 616-620 (1) Reinforced cutting-edge geometry for Fast Feed (FF) hardened materials up to 60 HRC (2) Radius for programming For tools, see pages: HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) 1 2 Tool with a Standard Tool Modified Corner Tool corner should 3° be modified by rounding to 2 mm DC+0.1 520 ISCAR
