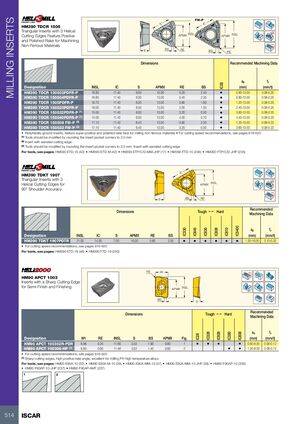

MILLING INSERTS FW-P IC IC HM390 TDCR 1505 Triangular Inserts with 3 Helical Cutting Edges Feature Positive APMX INSL APMX INSL and Polished Rake for Machining Non-Ferrous Materials Rd° S BS RE BS RE Dimensions Recommended Machining Data ap fz IC28 Designation INSL IC S APMX RE BS (mm) (mm/t) HM390 TDCR 150502PDFR-P 16.80 11.40 6.00 13.00 0.20 2.40 • 0.60-13.00 0.08-0.20 HM390 TDCR 150504PDFR-P 16.80 11.40 6.00 13.00 0.40 2.35 • 0.80-13.00 0.08-0.20 HM390 TDCR 1505PDFR-P 16.70 11.40 6.00 13.00 0.80 1.60 • 1.20-13.00 0.08-0.20 HM390 TDCR 150520PDFR-P 16.00 11.40 6.00 13.00 2.00 1.00 • 2.40-13.00 0.08-0.20 HM390 TDCR 150532PDFR-P (1) 15.00 11.40 6.00 13.00 3.20 0.50 • 3.60-13.00 0.08-0.20 HM390 TDCR 150540PDFR-P (1) 14.00 11.40 6.00 13.00 4.00 0.70 • 4.40-13.00 0.08-0.20 HM390 TDCR 150508 FW-P (2) 17.10 11.40 6.40 13.00 0.80 2.30 • 1.20-13.00 0.08-0.22 HM390 TDCR 150532 FW-P (3) 17.10 11.40 6.40 13.00 3.20 0.50 • 3.60-13.00 0.08-0.22 • Peripherally ground inserts, feature super positive and polished rake face for milling non-ferrous materials • For cutting speed recommendations, see pages 616-620 (1) Tools should be modified by rounding the insert pocket corners to 2.0 mm (2) Insert with serrated cutting edge (3) Tools should be modified by rounding the insert pocket corners to 2.0 mm. Insert with serrated cutting edge For tools, see pages: HM390 ETD-15 (42) • HM390 ETD-M (42) • HM390 ETP/C/D-MM-JHP (17) • HM390 FTD-15 (246) • HM390 FTP/C/D-JHP (235) IC HM390 TDKT 1907 Triangular Inserts with 3 INSL Helical Cutting Edges for APMX 90° Shoulder Accuracy Rd° S BS RE Recommended Dimensions Tough 1 Hard Machining Data IC5400 ap fz IC330 IC845 IC830 IC808 IC810 Designation INSL IC S APMX RE BS (mm) (mm/t) HM390 TDKT 1907PDTR 21.00 14.00 7.00 16.00 0.80 2.50 • • • • • • 1.20-16.00 0.10-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HM390 ETD-19 (46) • HM390 FTD-19 (250) RE W1 Rd° HM90 APCT 1003 Inserts with a Sharp Cutting Edge for Semi-Finish and Finishing APMX INSL BS S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC928 IC380 IC808 IC28 Designation W1 RE INSL S BS APMX Fig. (mm) (mm/t) HM90 APCT 100302R-PDR 6.96 0.20 11.66 3.53 1.90 9.80 1 • • • • 0.60-8.00 0.06-0.12 HM90 APCT 100308-HP (1) 6.80 0.80 11.46 3.53 1.40 9.80 2 • • 1.20-8.00 0.06-0.12 • For cutting speed recommendations, see pages 616-620 (1) Sharp cutting edges, high positive rake angle, excellent for milling PH high temperature alloys For tools, see pages: HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) 1 2 514 ISCAR
