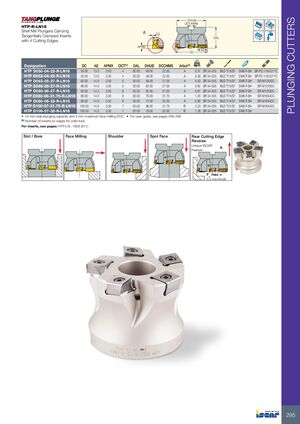

PLUNGING CUTTERS DHUB DCONMS HTP-R-LN16 Shell Mill Plungers Carrying A 0.5 Tangentially Clamped Inserts OAL with 4 Cutting Edges APMX AE DC kg Designation DC AE APMX CICT(1) OAL DHUB DCONMS Arbor(2) HTP D050-04-22-R-LN16 50.00 13.0 3.00 4 50.00 48.00 22.00 A 0.37 SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0271C HTP D052-04-22-R-LN16 52.00 13.0 3.00 4 50.00 48.00 22.00 A 0.39 SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0271C HTP D063-05-27-R-LN16 63.00 14.0 3.00 5 50.00 59.00 27.00 A 0.53 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C HTP D066-05-27-R-LN16 66.00 14.0 3.00 5 50.00 62.00 27.00 A 0.60 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C HTP D080-06-27-R-LN16 80.00 14.0 3.00 6 50.00 65.00 27.00 A 0.81 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C HTP D080-06-31.75-R-LN16 80.00 14.0 3.00 6 63.00 76.00 31.75 A 1.20 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C HTP D080-06-32-R-LN16 80.00 14.0 3.00 6 50.00 72.00 32.00 A 0.90 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C HTP D100-07-31.75-R-LN16 100.00 14.0 3.00 7 63.00 96.00 31.75 B 2.23 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C HTP D100-07-32-R-LN16 100.00 14.0 3.00 7 50.00 78.00 32.00 B 1.28 SR 34-535 BLD T15/S7 SW6-T-SH • 14 mm side plunging capacity and 3 mm maximum face milling DOC • For user guide, see pages 296-298 (1) Number of inserts (or edges for solid tool) For inserts, see pages: HTP LN.. 1606 (611) Slot / Bore Face Milling Shoulder Spot Face Rear Cutting Edge Reverse Unique ISCAR A Feature Fz max = 0.3 mm/tooth 295
