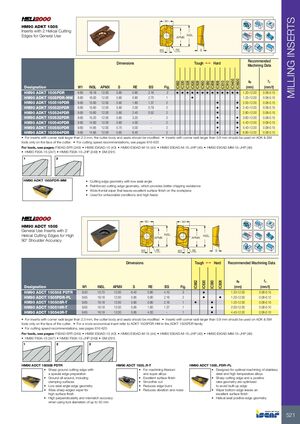

MILLING INSERTS W1 HM90 ADKT 1505 Inserts with 2 Helical Cutting Rd° Edges for General Use INSL APMX BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5600 IC882 IC330 IC328 IC830 IC928 IC950 IC380 IC808 IC908 IC810 IC910 Designation W1 INSL APMX S RE BS Fig. (mm) (mm/t) HM90 ADKT 1505PDR 9.65 16.18 12.00 5.85 0.80 2.16 2 • • • • • • • • • • • • • 1.20-12.00 0.08-0.15 HM90 ADKT 1505PDR-MM 9.60 16.00 12.00 5.80 0.80 2.70 1 • 1.20-12.00 0.08-0.15 HM90 ADKT 150516PDR 9.65 15.60 12.00 5.92 1.60 1.37 2 • • 2.00-12.00 0.08-0.15 HM90 ADKT 150520PDR 9.65 15.60 12.00 5.90 2.00 0.79 2 • • 2.40-12.00 0.08-0.15 HM90 ADKT 150524PDR 9.65 15.60 12.00 5.80 2.40 0.52 2 • 2.80-12.00 0.08-0.15 HM90 ADKT 150532PDR 9.65 15.20 12.00 5.85 3.20 - 2 • • 3.60-12.00 0.08-0.15 HM90 ADKT 150540PDR 9.65 14.83 12.00 5.80 4.00 - 2 • • 4.40-12.00 0.08-0.15 HM90 ADKT 150550PDR 9.65 14.85 12.00 5.75 5.00 - 2 • • 5.40-12.00 0.08-0.15 HM90 ADKT 150564PDR 9.65 14.85 12.00 5.65 6.40 - 2 • • 6.80-12.00 0.08-0.15 • For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified • Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter. • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) 1 2 HM90 ADKT 1505PDR-MM • Cutting edge geometry with low axial angle • Reinforced cutting edge geometry, which provides better chipping resistance • Wide frontal wiper that leaves excellent surface finish on the workpiece • Used for unfavorable conditions and high feeds W1 W1 HM90 ADCT 1505 General Use Inserts with 2 Rd° Helical Cutting Edges for High INSL INSL APMX APMX 90° Shoulder Accuracy BS RE BS RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC882 IC830 IC380 IC808 Designation W1 INSL APMX S RE BS Fig. (mm) (mm/t) HM90 ADCT 150508 PDTR 9.50 15.70 12.00 6.40 0.80 4.10 3 • 1.20-12.00 0.08-0.15 HM90 ADCT 1505PDR-PL 9.65 16.18 12.00 5.85 0.80 2.16 2 • • 1.20-12.00 0.08-0.12 HM90 ADCT 150508R-T 9.65 16.18 12.00 5.85 0.80 2.16 1 • • 1.20-12.00 0.08-0.10 HM90 ADCT 150516R-T 9.65 16.18 12.00 5.85 1.60 1.37 1 • 2.00-12.00 0.08-0.10 HM90 ADCT 150540R-T 9.65 16.18 12.00 5.85 4.00 - 1 • 4.40-12.00 0.08-0.10 • For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified • Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter. • For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) 1 2 3 HM90 ADCT 150508 PDTR HM90 ADCT 1505..R-T HM90 ADCT 1505..PDR-PL • Sharp ground cutting edge with • For machining titanium • Designed for optimal machining of stainless a special edge preparation and super alloys steel and high temperature alloys • Ground all around, including • Excellent surface finish • Sharp cutting edge and a positive clamping surfaces • Smoother cut rake geometry are optimized • Low axial angle edge geometry • Reduces edge burrs to avoid built-up edge • Wide sharp-edged wiper for • Reduces vibration and noise • Wiper bottom edge leaves an high surface finish excellent surface finish • High perpendicularity and mismatch accuracy • Helical axial positive edge geometry when using tool diameters of up to 50 mm 521
