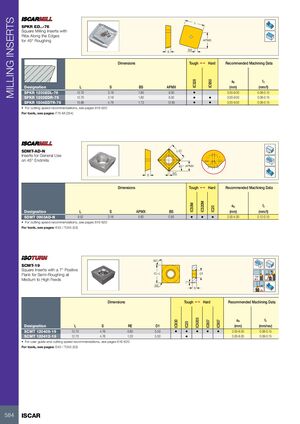

MILLING INSERTS L SPKR ED..-76 Square Milling Inserts with Ribs Along the Edges for 45° Roughing APMX BS S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC328 IC950 Designation L S BS APMX (mm) (mm/t) SPKR 1203EDL-76 12.70 3.18 1.80 9.50 • 3.00-9.00 0.08-0.15 SPKR 1203EDR-76 12.70 3.18 1.80 9.50 • • 3.00-9.00 0.08-0.15 SPKR 1504EDTR-76 15.88 4.76 1.73 12.65 • • 3.00-9.00 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: F75-M (254) SDMT-AD-N L/IC Inserts for General Use on 45° Endmills 45° APMX BS S Dimensions Tough 1 Hard Recommended Machining Data IC520M IC50M ap fz Designation L S APMX BS IC20 (mm) (mm/t) SDMT 0903AD-N 9.52 3.18 5.60 0.90 • • • 2.00-4.00 0.12-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E45 / T245 (53) 90° SCMT-19 Square Inserts with a 7° Positive 45º IC=L D1 Flank for Semi-Roughing at 75º 45º Medium to High Feeds 7° RE 45° S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC5005 IC830 IC807 IC907 IC20 Designation L S RE D1 (mm) (mm/rev) SCMT 120408-19 12.70 4.76 0.80 5.50 • • • • • 3.00-8.00 0.08-0.15 SCMT 120412-19 12.70 4.76 1.20 5.50 • 3.00-8.00 0.08-0.15 • For user guide and cutting speed recommendations, see pages 616-620 For tools, see pages: E45 / T245 (53) 584 ISCAR
