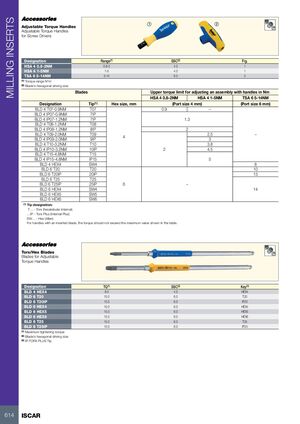

MILLING INSERTS 1 2 Adjustable Torque Handles Adjustable Torque Handles for Screw Drivers Designation Range(1) SSC(2) Fig. HSA 4 0.8-2NM 0.8-2 4.0 1 HSA 4 1-5NM 1-5 4.0 1 TSA 6 5-14NM 5-14 6.0 2 (1) Torque range N*m (2) Blade’s hexagonal driving size Blades Upper torque limit for adjusting an assembly with handles in Nm HSA 4 0.8-2NM HSA 4 1-5NM TSA 6 5-14NM Designation Tip(1) Hex size, mm (Port size 4 mm) (Port size 6 mm) BLD 4 T07-0.9NM T07 0.9 − BLD 4 IP07-0.9NM 7IP BLD 4 IP07-1.2NM 7IP 1.3 BLD 4 T08-1.2NM T08 BLD 4 IP08-1.2NM 8IP 2 BLD 4 T09-2.0NM T09 2.5 − 4 BLD 4 IP09-2.0NM 9IP 3 BLD 4 T10-3.2NM T10 3.8 BLD 4 IP10-3.2NM 10IP 2 4.5 BLD 4 T15-4.8NM T15 BLD 4 IP15-4.8NM IP15 5 BLD 4 HEX4 SW4 8 BLD 6 T20 T20 10 BLD 6 T20IP 20IP 13 BLD 6 T25 T25 BLD 6 T25IP 25IP 6 − BLD 6 HEX4 SW4 14 BLD 6 HEX5 SW5 BLD 6 HEX6 SW6 (1) Tip designation: T… - Torx (hexalobular internal) …IP - Torx Plus (Internal Plus) SW… - Hex (Allen) For handles with an inserted blade, the torque should not exceed the maximum value shown in the table. Torx/Hex Blades Blades for Adjustable Torque Handles Designation TQ(1) SSC(2) Key(3) BLD 4 HEX4 8.0 4.0 HEX4 BLD 6 T20 10.0 6.0 T20 BLD 6 T20IP 13.0 6.0 IP20 BLD 6 HEX4 15.0 6.0 HEX4 BLD 6 HEX5 15.0 6.0 HEX5 BLD 6 HEX6 15.0 6.0 HEX6 BLD 6 T25 15.0 6.0 T25 BLD 6 T25IP 15.0 6.0 IP25 (1) Maximum tightening torque (2) Blade’s hexagonal driving size (3) IP-TORX PLUS Tip 614 ISCAR
