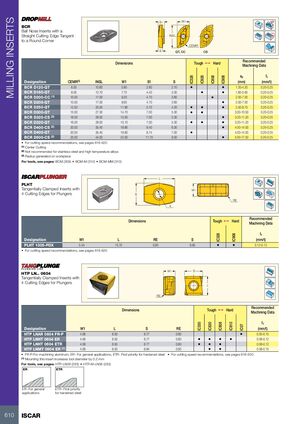

MILLING INSERTS S1 W1 BCR Ball Nose Inserts with a Rd° Straight Cutting Edge Tangent lNSL to a Round Corner CEMR S QT, CC CS Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC928 IC808 IC908 Designation CEMR(3) INSL W1 S1 S (mm) (mm/t) BCR D120-QT 6.00 10.60 5.80 2.80 2.10 • • 1.20-4.20 0.20-0.25 BCR D160-QT 8.00 12.70 7.70 4.40 3.30 • • 1.60-5.60 0.20-0.25 BCR D200-CC (1) 10.00 17.00 9.20 4.70 3.60 • 2.00-7.00 0.20-0.25 BCR D200-QT 10.00 17.00 9.60 4.70 3.60 • 2.00-7.00 0.20-0.25 BCR D250-QT 12.50 20.00 11.80 5.70 4.20 • • • 2.50-8.75 0.20-0.25 BCR D300-QT 15.00 27.30 14.70 7.00 5.30 • • 3.00-10.50 0.20-0.25 BCR D320-CS (2) 16.00 28.00 15.00 7.00 5.30 • 3.20-11.20 0.20-0.25 BCR D320-QT 16.00 28.00 15.10 7.00 5.30 • • • 3.20-11.20 0.20-0.25 BCR D400-CS (2) 20.00 35.40 18.80 9.40 6.30 • 4.00-14.00 0.20-0.25 BCR D400-QT 20.00 35.40 18.80 9.74 7.00 • 4.00-14.00 0.20-0.25 BCR D500-CS (2) 25.00 44.00 24.00 11.70 9.00 • 5.00-17.50 0.20-0.25 • For cutting speed recommendations, see pages 616-620 (1) Center Cutting (2) Not recommended for stainless steel and high temperature alloys (3) Radius generated on workpiece For tools, see pages: BCM (309) • BCM-M (310) • BCM-MM (310) L PLHT Tangentially Clamped Inserts with W1 4 Cutting Edges for Plungers S RE 4 Recommended Dimensions Tough 1 Hard Machining Data fz IC328 IC908 Designation W1 L RE S (mm/t) PLHT 1305-PDX 5.45 13.70 0.60 9.95 • • 0.12-0.12 • For cutting speed recommendations, see pages 616-620 W1 S HTP LN.. 0604 Tangentially Clamped Inserts with 4 Cutting Edges for Plungers L RE Recommended Dimensions Tough 1 Hard Machining Data fz IC330 IC830 IC808 IC810 IC07 Designation W1 L S RE (mm/t) HTP LNAR 0604 FR-P 4.06 6.50 6.77 0.80 • 0.05-0.15 HTP LNHT 0604 ER 4.06 6.50 6.77 0.80 • • • • 0.08-0.12 HTP LNHT 0604 ETR 4.06 6.50 6.77 0.80 • • • 0.08-0.12 HTP LNMT 0604 ER (1) 4.06 6.50 6.84 0.60 • • 0.08-0.15 • FR-P-For machining aluminum, ER- For general applications, ETR- First priority for hardened steel • For cutting speed recommendations, see pages 616-620 (1) Mounting this insert increases tool diameter by 0.2 mm For tools, see pages: HTP-LN06 (293) • HTP-M-LN06 (293) ER ETR ER- For general ETR- First priority applications for hardened steel 610 ISCAR
