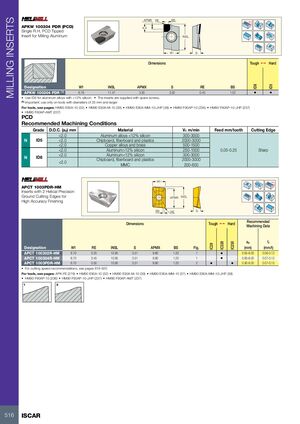

MILLING INSERTS APMX RE BS Rd° APKW 100304 PDR (PCD) 4.4 Single R.H. PCD Tipped Insert for Milling Aluminum lNSL W1 S Dimensions Tough 1 Hard ID8 ID5 Designation W1 INSL APMX S RE BS APKW 100304 PDR (1) 6.76 11.47 3.50 3.50 0.40 1.52 • • • Use ID5 for aluminum alloys with <12% silicon. • The inserts are supplied with spare screws. (1) Important: use only on tools with diameters of 25 mm and larger For tools, see pages: HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) PCD Recommended Machining Conditions Grade D.O.C. (ap) mm Material Vc m/min Feed mm/tooth Cutting Edge <2.0 Aluminum alloys <12% silicon 300-3000 N ID5 <2.0 Chipboard, fiberboard and plastics 2000-3000 <2.0 Copper alloys and brass 500-1500 <2.0 Aluminum>12% silicon 250-1000 0.05-0.25 Sharp <2.0 Aluminum<12% silicon 300-3000 N ID8 Chipboard, fiberboard and plastics 2000-3000 <2.0 MMC 200-600 W1 Rd° APCT 1003PDR-HM Inserts with 2 Helical Precision Ground Cutting Edges for APMX INSL High Accuracy Finishing BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC250 IC28 Designation W1 RE INSL S APMX BS Fig. (mm) (mm/t) APCT 100302R-HM 6.70 0.25 10.95 3.51 9.80 1.20 1 • 0.65-8.00 0.06-0.12 APCT 100304R-HM 6.70 0.45 10.95 3.51 9.80 1.20 1 • 0.85-8.00 0.07-0.12 APCT 1003PDR-HM 6.70 0.50 10.95 3.51 9.80 1.20 2 • • 0.90-8.00 0.07-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: APK-FE (279) • HM90 E90A-10 (32) • HM90 E90A-M-10 (39) • HM90 E90A-MM-10 (37) • HM90 E90A-MM-10-JHP (38) • HM90 F90AP-10 (236) • HM90 F90AP-10-JHP (237) • HM90 F90AP-AMT (237) 1 2 516 ISCAR
