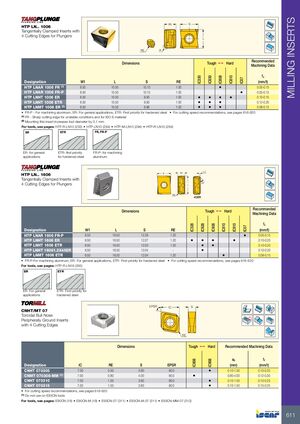

MILLING INSERTS W1 S HTP LN.. 1006 Tangentially Clamped Inserts with 4 Cutting Edges for Plungers L RE A Recommended Dimensions Tough 1 Hard Machining Data fz IC330 IC830 IC808 IC810 IC07 Designation W1 L S RE (mm/t) HTP LNAR 1006 FR (1) 6.50 10.50 10.13 1.00 • 0.05-0.15 HTP LNAR 1006 FR-P 6.50 10.50 10.13 1.00 • 0.05-0.15 HTP LNHT 1006 ER 6.50 10.50 9.93 1.00 • • • • 0.10-0.15 HTP LNHT 1006 ETR 6.50 10.50 9.93 1.00 • • • 0.12-0.20 HTP LNMT 1006 ER (2) 6.50 10.50 9.96 1.00 • • • 0.08-0.15 • FR-P - For machining aluminum, ER- For general applications, ETR- First priority for hardened steel • For cutting speed recommendations, see pages 616-620 (1) FR - Sharp cutting edge for unstable conditions and for ISO S material (2) Mounting this insert increases tool diameter by 0.1 mm For tools, see pages: HTF-R-LN10 (233) • HTP-LN10 (294) • HTP-M-LN10 (294) • HTP-R-LN10 (294) ER ETR FR, FR-P ER- for general ETR- first priority FR-P- for machining applications for hardened steel aluminum W1 1.2 S HTP LN.. 1606 Tangentially Clamped Inserts with 45° 4 Cutting Edges for Plungers L RE 45ER Recommended Dimensions Tough 1 Hard Machining Data fz IC328 IC928 IC908 IC810 IC910 IC07 Designation W1 L S RE (mm/t) HTP LNAR 1606 FR-P 6.50 16.50 12.28 1.20 • 0.05-0.15 HTP LNHT 1606 ER 6.50 16.50 12.07 1.20 • • • • 0.10-0.20 HTP LNHT 1606 ETR 6.50 16.50 12.03 1.20 • • 0.10-0.20 HTP LNHT 16061.2X45ER 6.50 16.50 12.04 - • 0.10-0.20 HTP LNMT 1606 ETR 6.50 16.50 12.04 1.20 • 0.08-0.15 • FR-P-For machining aluminum, ER- For general applications, ETR- First priority for hardened steel • For cutting speed recommendations, see pages 616-620 For tools, see pages: HTP-R-LN16 (295) ER ETR ER- For general ETR- First priority for applications hardened steel EPSR IC S CNHT/MT 07 Toroidal Bull Nose Rd° Peripherally Ground Inserts with 4 Cutting Edges RE Dimensions Tough 1 Hard Recommended Machining Data ap fz IC808 IC908 Designation IC RE S EPSR (mm) (mm/t) CNHT 070305 7.00 0.50 3.60 80.0 • 0.10-1.50 0.10-0.25 CNMT 070308-MM (1) 7.00 0.80 4.00 80.0 • 0.80-4.00 0.12-0.30 CNHT 070310 7.00 1.00 3.60 80.0 • 0.10-1.50 0.10-0.25 CNHT 070315 7.00 1.50 3.60 80.0 • 0.10-1.50 0.10-0.25 • For cutting speed recommendations, see pages 616-620 (1) Do not use on E93CN tools For tools, see pages: E90CN (19) • E90CN-M (19) • E93CN-07 (311) • E93CN-M-07 (311) • E93CN-MM-07 (312) 611
