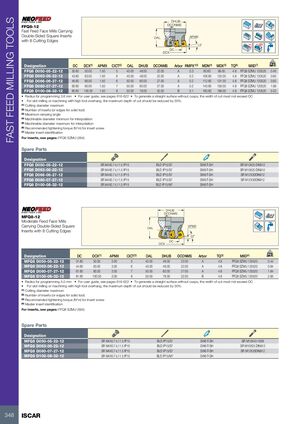

FAST FEED MILLING TOOLS DHUB DCONMS FFQ8-12 Fast Feed Face Mills Carrying Double-Sided Square Inserts OAL APMX with 8 Cutting Edges 12˚ Rd° DC DCX kg Designation DC DCX(1) APMX CICT(2) OAL DHUB DCONMS Arbor RMPX°(3) MDN(4) MDX(5) TQ(6) MIID(7) FFQ8 D050-05-22-12 30.60 50.00 1.50 5 40.00 48.00 22.00 A 0.3 80.60 99.00 4.8 FFQ8 SZMU 120520 0.46 FFQ8 D063-06-22-12 43.60 63.00 1.50 6 40.00 48.00 22.00 A 0.2 106.60 125.00 4.8 FFQ8 SZMU 120520 0.60 FFQ8 D066-06-27-12 46.60 66.00 1.50 6 50.00 60.00 27.00 A 0.2 112.60 131.00 4.8 FFQ8 SZMU 120520 0.83 FFQ8 D080-07-27-12 60.60 80.00 1.50 7 50.00 60.00 27.00 A 0.2 140.60 159.00 4.8 FFQ8 SZMU 120520 1.98 FFQ8 D100-08-32-12 80.60 100.00 1.50 8 50.00 78.00 32.00 B 0.1 180.60 199.00 4.8 FFQ8 SZMU 120520 3.03 • Radius for programming 3.6 mm • For user guide, see pages 616-622 • To generate a straight surface without cusps, the width of cut must not exceed DC • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 30%. (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) Machinable diameter minimum for interpolation (5) Machinable diameter maximum for interpolation (6) Recommended tightening torque (N*m) for insert screw (7) Master insert identification For inserts, see pages: FFQ8 SZMU (594) Spare Parts Designation FFQ8 D050-05-22-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 FFQ8 D063-06-22-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 FFQ8 D066-06-27-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M12X30DIN912 FFQ8 D080-07-27-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M12X30DIN912 FFQ8 D100-08-32-12 SR M4X0.7-L11.5 IP15 BLD IP15/M7 SW6-T-SH DHUB DCONMS MFQ8-12 Moderate Feed Face Mills Carrying Double-Sided Square OAL APMX Inserts with 8 Cutting Edges 22˚ DC DCX kg Designation DC DCX(1) APMX CICT(2) OAL DHUB DCONMS Arbor TQ(3) MIID(4) MFQ8 D050-05-22-12 31.60 50.00 3.00 5 40.00 48.00 22.00 A 4.8 FFQ8 SZMU 120520 0.44 MFQ8 D063-06-22-12 44.60 63.00 3.00 6 40.00 48.00 22.00 A 4.8 FFQ8 SZMU 120520 0.84 MFQ8 D080-07-27-12 61.60 80.00 3.00 7 50.00 60.00 27.00 A 4.8 FFQ8 SZMU 120520 1.84 MFQ8 D100-08-32-12 81.60 100.00 3.00 8 50.00 78.00 32.00 B 4.8 FFQ8 SZMU 120520 2.95 • Radius for programming 5.0 mm • For user guide, see pages 616-622 • To generate a straight surface without cusps, the width of cut must not exceed DC • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 30%. (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Recommended tightening torque (N*m) for insert screw (4) Master insert identification For inserts, see pages: FFQ8 SZMU (594) Spare Parts Designation MFQ8 D050-05-22-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M10X40-1638 MFQ8 D063-06-22-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 MFQ8 D080-07-27-12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH SR M12X30DIN912 MFQ8 D100-08-32-12 SR M4X0.7-L11.5 IP15 BLD IP15/M7 SW6-T-SH 348 ISCAR
