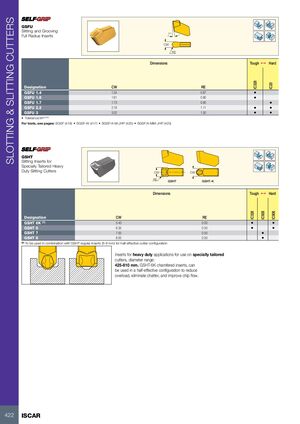

SLOTTING & SLITTING CUTTERS GSFU Slitting and Grooving 7° Full Radius Inserts CW RE Dimensions Tough 1 Hard IC328 IC20 Designation CW RE GSFU 1.4 1.34 0.67 • GSFU 1.6 1.61 0.80 • GSFU 1.7 1.73 0.85 • GSFU 2.2 2.16 1.11 • • GSFU 3 3.02 1.50 • • • Tolerance:W±0.05 For tools, see pages: SGSF (418) • SGSF-W (417) • SGSF/A-M-JHP (420) • SGSF/A-MM-JHP (420) GSHT Slitting Inserts for Specially Tailored Heavy Duty Slitting Cutters CW CW RE GSHT GSHT-K Dimensions Tough 1 Hard IC328 IC928 IC908 Designation CW RE GSHT 6K (1) 5.40 0.00 • • GSHT 6 6.35 0.50 • • GSHT 7 7.00 0.50 • GSHT 8 8.00 0.50 • (1) To be used in combination with GSHT regular inserts (6-8 mm) for half-effective cutter configuration Inserts for heavy duty applications for use on specially tailored cutters, diameter range: 425-810 mm. GSHT-6K chamfered inserts, can be used in a half-effective configuration to reduce overload, eliminate chatter, and improve chip flow. 422 ISCAR
