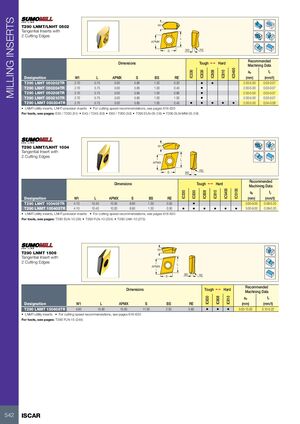

MILLING INSERTS W1 T290 LNMT/LNHT 0502 Tangential Inserts with 2 Cutting Edges L APMX S BS RE Recommended Dimensions Tough 1 Hard Machining Data IC5400 ap fz IC330 IC830 IC808 IC810 Designation W1 L APMX S BS RE (mm) (mm/t) T290 LNHT 050202TR 2.70 5.75 5.00 5.85 1.20 0.20 • • 2.00-5.00 0.03-0.07 T290 LNHT 050204TR 2.70 5.75 5.00 5.85 1.00 0.40 • 2.00-5.00 0.03-0.07 T290 LNHT 050208TR 2.70 5.75 5.00 5.85 1.00 0.80 • 2.00-5.00 0.03-0.07 T290 LNHT 050210TR 2.70 5.75 5.00 5.85 1.00 1.00 • 2.00-5.00 0.03-0.07 T290 LNMT 050204TR 2.70 5.75 5.00 5.85 1.00 0.40 • • • • • 2.00-5.00 0.04-0.08 • LNMT-utility inserts. LNHT-precision inserts • For cutting speed recommendations, see pages 616-620 For tools, see pages: E30 / T230 (51) • E45 / T245 (53) • E60 / T260 (53) • T290 ELN-05 (18) • T290 ELN-MM-05 (18) T290 LNMT/LNHT 1004 W1 Tangential Insert with 2 Cutting Edges L APMX RE S BS Recommended Dimensions Tough 1 Hard Machining Data IC5400 IC5100 ap fz IC330 IC830 IC808 IC810 Designation W1 L APMX S BS RE (mm) (mm/t) T290 LNHT 100405TR 4.10 10.40 10.00 8.90 1.30 0.50 • 3.00-9.00 0.08-0.20 T290 LNMT 100405TR 4.10 10.40 10.00 8.90 1.30 0.50 • • • • • • 3.00-9.00 0.08-0.20 • LNMT-utility inserts, LNHT-precision inserts • For cutting speed recommendations, see pages 616-620 For tools, see pages: T290 ELN-10 (29) • T290 FLN-10 (234) • T290 LNK-10 (275) W1 T290 LNMT 1506 Tangential Insert with 2 Cutting Edges L APMX BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC830 IC808 IC810 Designation W1 L APMX S BS RE (mm) (mm/t) T290 LNMT 150608TR 5.60 15.90 15.00 11.50 2.00 0.80 • • • 5.00-15.00 0.10-0.22 • LNMT-utility inserts • For cutting speed recommendations, see pages 616-620 For tools, see pages: T290 FLN-15 (244) 542 ISCAR
