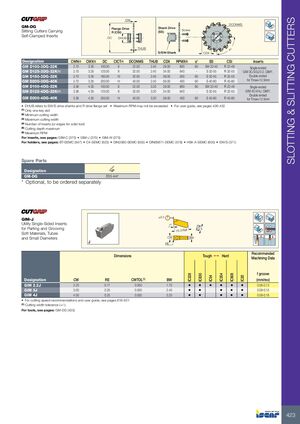

Фрезерные инструменты Iscar 2026 - страница 425

SLOTTING & SLITTING CUTTERS CW DCONMS GM-DG Flange Drive Shank Drive Slitting Cutters Carrying (SS) Screw R (CSI) Self-Clamped Inserts DC DHUB THUB a° S/SW-Shank CDX Designation CWN(2) CWX(3) DC CICT(4) DCONMS THUB CDX RPMX(5) a° SS CSI Inserts GM D100-3DG-22K 2.70 3.35 100.00 6 22.00 2.40 29.00 800 90 SW 32-40 R 22-46 Single-ended: GM D125-3DG-32K(1) 2.70 3.35 125.00 8 32.00 2.40 34.00 640 - S 32-55 R 32-55 GIM 3C/3/3J/3.2, GIMY.. GM D160-3DG-32K 2.70 3.35 160.00 10 32.00 2.40 39.00 500 90 S 32-55 R 32-55 Double ended: GM D200-3DG-40K 2.70 3.35 200.00 14 40.00 2.40 59.00 400 90 S 40-80 R 40-80 for Tmax=12.5mm GM D100-4DG-22K 3.36 4.35 100.00 6 22.00 3.20 29.00 800 90 SW 32-40 R 22-46 Single-ended: GM D125-4DG-32K(1) 3.36 4.35 125.00 8 32.00 3.20 34.00 640 - S 32-55 R 32-55 GIM 4C/4/4J, GIMY.. Double ended: GM D200-4DG-40K 3.36 4.35 200.00 14 40.00 3.20 59.00 400 90 S 40-80 R 40-80 for Tmax=12.5mm • DHUB refers to SW/S drive shanks and R drive flange set • Maximum RPM may not be exceeded • For user guide, see pages 426-432 (1) Only one key slot (2) Minimum cutting width (3) Maximum cutting width (4) Number of inserts (or edges for solid tool) (5) Cutting depth maximum (6) Maximum RPM For inserts, see pages: GIM-C (375) • GIM-J (375) • GIM-W (375) For holders, see pages: BT-SEMC (647) • C#-SEMC (623) • DIN2080-SEMC (655) • DIN69871-SEMC (578) • HSK A-SEMC (605) • SW/S (371) Spare Parts Designation GM-DG EDG 44A* * Optional, to be ordered separately ±0.1 GIM-J Utility Single-Sided Inserts 7° for Parting and Grooving 5 15.3 Ref. Soft Materials, Tubes and Small Diameters CW BW RE Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC830 IC354 IC908 IC54 IC20 Designation CW RE CWTOL(1) BW (mm/rev) GIM 2.2J 2.20 0.17 0.050 1.70 • • • • • • 0.06-0.13 GIM 3J 3.00 0.25 0.050 2.40 • • • • • 0.08-0.15 GIM 4J 4.00 0.25 0.050 3.20 • • • • • 0.08-0.18 • For cutting speed recommendations and user guide, see pages 616-621 (1) Cutting width tolerance (+/-) For tools, see pages: GM-DG (423) 423
