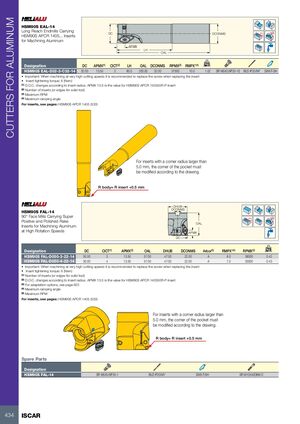

CUTTERS FOR ALUMINUM HSM90S EAL-14 Long Reach Endmills Carrying DC DCONMS Rd° HSM90S APCR 1405... Inserts for Machining Aluminum APMX LH OAL kg Designation DC APMX(1) CICT(2) LH OAL DCONMS RPMX(3) RMPX°(4) HSM90S EAL-D32-2-C32-14 32.00 13.50 2 80.0 200.00 32.00 37500 10.0 1.02 SR M5X0.8IP20-1S BLD IP20/M7 SW6-T-SH • Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert • Insert tightening torque: 6 (Nxm) (1) D.O.C. changes according to insert radius. APMX 13.5 is the value for HSM90S APCR 140550R-P insert (2) Number of inserts (or edges for solid tool) (3) Maximum RPM (4) Maximum ramping angle For inserts, see pages: HSM90S APCR 1405 (533) For inserts with a corner radius larger than 5.0 mm, the corner of the pocket must be modified according to the drawing. R body= R insert +0.5 mm DHUB DCONMS HSM90S FAL-14 90° Face Mills Carrying Super Rd° Positive and Polished Rake OAL Inserts for Machining Aluminum at High Rotation Speeds APMX DC kg Designation DC CICT(1) APMX(2) OAL DHUB DCONMS Arbor(3) RMPX°(4) RPMX(5) HSM90S FAL-D050-3-22-14 50.00 3 13.50 57.00 47.00 22.00 A 8.0 38000 0.42 HSM90S FAL-D050-4-22-14 50.00 4 13.50 57.00 47.00 22.00 A 7.0 33000 0.43 • Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert • Insert tightening torque: 6 (Nxm) (1) Number of inserts (or edges for solid tool) (2) D.O.C. changes according to insert radius. APMX 13.5 is the value for HSM90S APCR 140550R-P insert (3) For adaptation options, see page 622 (4) Maximum ramping angle (5) Maximum RPM For inserts, see pages: HSM90S APCR 1405 (533) For inserts with a corner radius larger than 5.0 mm, the corner of the pocket must be modified according to the drawing. R body= R insert +0.5 mm Spare Parts Designation HSM90S FAL-14 SR M5X0.8IP20-1 BLD IP20/M7 SW6-T-SH SR M10X40DIN912 434 ISCAR
