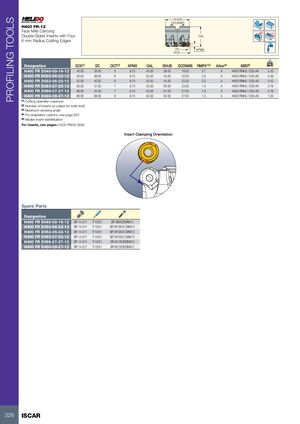

PROFILING TOOLS DHUB DCONMS H400 FR-12 Face Mills Carrying Rd° Double-Sided Inserts with Four OAL 6 mm Radius Cutting Edges DC APMX DCX kg Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor(4) MIID(5) H400 FR D040-05-16-12 40.00 28.00 5 8.70 40.00 38.00 16.00 3.7 A H400 RNHU 1205-AX 0.20 H400 FR D050-06-22-12 50.00 38.00 6 8.70 50.00 45.00 22.00 2.6 A H400 RNHU 1205-AX 0.39 H400 FR D052-06-22-12 52.00 40.00 6 8.70 50.00 45.00 22.00 2.5 A H400 RNHU 1205-AX 0.42 H400 FR D063-07-22-12 63.00 51.00 7 8.70 50.00 60.00 22.00 1.9 A H400 RNHU 1205-AX 0.79 H400 FR D066-07-27-12 66.00 54.00 7 8.70 50.00 61.00 27.00 1.8 A H400 RNHU 1205-AX 0.78 H400 FR D080-08-27-12 80.00 68.00 8 8.70 50.00 62.00 27.00 1.5 A H400 RNHU 1205-AX 1.03 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) For adaptation options, see page 622 (5) Master insert identification For inserts, see pages: H400 RNHU (606) Insert Clamping Orientation Spare Parts Designation H400 FR D040-05-16-12 SR 14-571 T-10/51 SR M8X25DIN912 H400 FR D050-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D052-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D063-07-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D066-07-27-12 SR 14-571 T-10/51 SR M12X30DIN912 H400 FR D080-08-27-12 SR 14-571 T-10/51 SR M12X30DIN912 326 ISCAR
