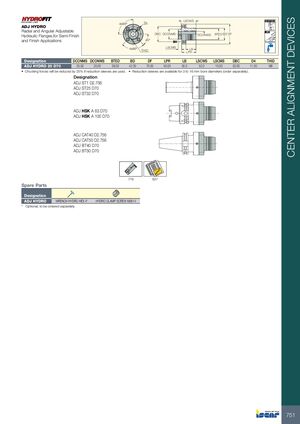

CENTER ALIGNMENT DEVICES LSCWS 58-60 HRc 4x90º D4 ADJ HYDRO Radial and Angular Adjustable √N5 DBC DCONMS DCONWS BTED BD DF Hydraulic Flanges,for Semi-Finish and Finish Applications 45º 4x90º LSCMS THID LB LPR Designation DCONMS DCONWS BTED BD DF LPR LB LSCWS LSCMS DBC D4 THID ADJ HYDRO 20 D70 35.00 20.00 38.00 42.00 70.00 50.00 35.0 52.0 10.00 53.00 11.00 M6 • Chucking forces will be reduced by 25% if reduction sleeves are used. • Reduction sleeves are available for 3 to 16 mm bore diameters (order separately). Designation ADJ ST1 D2.756 ADJ ST25 D70 ADJ ST32 D70 ADJ HSK A 63 D70 ADJ HSK A 100 D70 ADJ CAT40 D2.756 ADJ CAT50 D2.756 ADJ BT40 D70 ADJ BT50 D70 776 637 Spare Parts Designation ADJ HYDRO WRENCH HYDRO HEX 4* HYDRO CLAMP SCREW M8X14 * Optional, to be ordered separately 751
