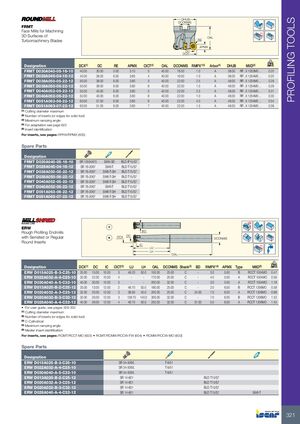

Фрезерные инструменты Iscar 2026 - страница 323

PROFILING TOOLS DHUB DCONMS FRMT Face Mills for Machining Rd° 3D Surfaces of OAL Turbomachinery Blades RE APMX DC DCX kg Designation DCX(1) DC RE APMX CICT(2) OAL DCONMS RMPX°(3) Arbor(4) DHUB MIID(5) FRMT D030A040-05-16-10 40.00 30.00 5.00 3.10 5 40.00 16.00 1.0 A 38.00 RP...X 1003M0 ... 0.20 FRMT D028A040-04-16-12 40.00 28.00 6.00 3.80 4 40.00 16.00 1.0 A 38.00 RP...X 1204M0 ... 0.20 FRMT D038A050-05-22-12 50.00 38.00 6.00 3.80 5 40.00 22.00 2.5 A 48.00 RP...X 1204M0 ... 0.29 FRMT D038A050-06-22-12 50.00 38.00 6.00 3.80 6 40.00 22.00 1.0 A 48.00 RP...X 1204M0 ... 0.29 FRMT D040A052-05-22-12 52.00 40.00 6.00 3.80 5 40.00 22.00 2.5 A 48.00 RP...X 1204M0 ... 0.31 FRMT D040A052-06-22-12 52.00 40.00 6.00 3.80 6 40.00 22.00 1.0 A 48.00 RP...X 1204M0 ... 0.30 FRMT D051A063-06-22-12 63.00 51.00 6.00 3.80 6 40.00 22.00 4.0 A 48.00 RP...X 1204M0 ... 0.54 FRMT D051A063-07-22-12 63.00 51.00 6.00 3.80 7 40.00 22.00 1.5 A 48.00 RP...X 1204M0 ... 0.39 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle (4) For adaptation see page 622 (5) Insert identification For inserts, see pages: RPHX/RPMX (605) Spare Parts Designation FRMT D030A040-05-16-10 SR 10504970 SW6-SD BLD IP15/S7 FRMT D028A040-04-16-12 SR 76-2067 SW6-T BLD T15/S7 FRMT D038A050-05-22-12 SR 76-2067 SW6-T-SH BLD T15/S7 FRMT D038A050-06-22-12 SR 76-2067 SW6-T-SH BLD T15/S7 FRMT D040A052-05-22-12 SR 76-2067 SW6-T-SH BLD T15/S7 FRMT D040A052-06-22-12 SR 76-2067 SW6-T BLD T15/S7 FRMT D051A063-06-22-12 SR 76-2067 SW6-T-SH BLD T15/S7 FRMT D051A063-07-22-12 SR 76-2067 SW6-T-SH BLD T15/S7 ERW A BD Rough Profiling Endmills DC with Serrated or Regular B DCX DCONMS Round Inserts IC Rd° LU LH OAL kg Designation DCX(1) DC IC CICT(2) LU LH OAL DCONMS Shank(3) BD RMPX°(4) APMX Type MIID(5) ERW D015A025-B-3-C25-10 25.00 15.00 10.00 3 49.20 50.0 150.00 25.00 C - 3.0 5.00 B RCCT 1004MO 0.47 ERW D022A032-A-4-C25-10 32.00 22.00 10.00 4 - - 170.00 25.00 C - 4.0 5.00 A RCCT 1004MO 0.59 ERW D030A040-A-5-C32-10 40.00 30.00 10.00 5 - - 200.00 32.00 C - 3.0 5.00 A RCCT 1004MO 1.16 ERW D013A025-B-2-C25-12 25.00 13.00 12.00 2 48.70 50.0 180.00 25.00 C - 2.0 6.00 B RCCT 1206MO 0.58 ERW D020A032-A-3-C25-12 32.00 20.00 12.00 3 38.90 40.0 200.00 25.00 C 24.00 7.0 6.00 A RCCT 1206MO 0.68 ERW D020A032-B-3-C32-12 32.00 20.00 12.00 3 138.70 140.0 300.00 32.00 C - 7.0 6.00 B RCCT 1206MO 1.53 ERW D028A040-A-4-C32-12 40.00 28.00 12.00 4 48.70 50.0 250.00 32.00 C 31.00 5.0 6.00 A RCCT 1206MO 1.45 • For user guide, see pages 329-332 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) C-Cylindrical (4) Maximum ramping angle (5) Master insert identification For inserts, see pages: RCMT/RCCT-MO (603) • RCMT/RCMW/RCCW-FW (604) • RCMW/RCCW-MO (603) Spare Parts Designation ERW D015A025-B-3-C25-10 SR 34-506/L T-9/51 ERW D022A032-A-4-C25-10 SR 34-506/L T-9/51 ERW D030A040-A-5-C32-10 SR 34-506/L T-9/51 ERW D013A025-B-2-C25-12 SR 14-601 BLD T15/S7 ERW D020A032-A-3-C25-12 SR 14-601 BLD T15/S7 ERW D020A032-B-3-C32-12 SR 14-601 BLD T15/S7 ERW D028A040-A-4-C32-12 SR 14-601 BLD T15/S7 SW6-T 321
