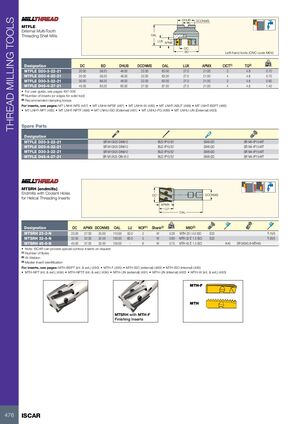

THREAD MILLING TOOLS DHUB DCONMS MTFLE External Multi-Tooth Threading Shell Mills OAL LUX APMX DC BD Left-hand tools (CNC code M04) kg Designation DC BD DHUB DCONMS OAL LUX APMX CICT(1) TQ(2) MTFLE D20-3-22-21 20.00 58.20 48.00 22.00 63.00 27.0 21.00 3 4.8 0.70 MTFLE D20-4-22-21 20.00 58.20 48.00 22.00 63.00 27.0 21.00 4 4.8 0.70 MTFLE D30-3-22-21 30.00 68.20 48.00 22.00 63.00 27.0 21.00 3 4.8 0.90 MTFLE D45-4-27-21 45.00 83.20 60.00 27.00 67.00 27.0 21.00 4 4.8 1.40 • For user guide, see pages 497-506 (1) Number of inserts (or edges for solid tool) (2) Recommended clamping torque For inserts, see pages: MT LNH#-NPS (487) • MT LNH#-NPSF (487) • MT LNH#-W (485) • MT LNHT-ABUT (488) • MT LNHT-BSPT (486) • MT LNHT-NPT (485) • MT LNHT-NPTF (486) • MT LNHU-ISO (External) (481) • MT LNHU-PG (489) • MT LNHU-UN (External) (483) Spare Parts Designation MTFLE D20-3-22-21 SR M10X25 DIN912 BLD IP15/S7 SW6-SD SR M4-IP15-MT MTFLE D20-4-22-21 SR M10X25 DIN912 BLD IP15/S7 SW6-SD SR M4-IP15-MT MTFLE D30-3-22-21 SR M10X25 DIN912 BLD IP15/S7 SW6-SD SR M4-IP15-MT MTFLE D45-4-27-21 SR M12X25 DIN 912 BLD IP15/S7 SW6-SD SR M4-IP15-MT MTSRH (endmills) Endmills with Coolant Holes DC DCONMS for Helical Threading Inserts APMX LU OAL kg Designation DC APMX DCONMS OAL LU NOF(1) Shank(2) MIID(3) MTSRH 23-2-N 23.00 27.00 25.00 110.00 50.0 2 W 0.26 MTH 23 I 4.0 ISO S23 T-15/5 MTSRH 32-5-N 32.00 32.00 32.00 130.00 60.0 5 W 0.60 MTH 32 E 1.5 ISO S32 T-20/5 MTSRH 45-6-N 45.00 37.00 32.00 130.00 - 6 W 0.75 MTH 45 E 1.5 ISO K40 SR M5X0.8-MTH45 • Note: ISCAR can provide special contour inserts on request (1) Number of flutes (2) W-Weldon (3) Master insert identification For inserts, see pages: MTH-BSPT (int. & ext.) (493) • MTH-F (495) • MTH-ISO (external) (489) • MTH-ISO (internal) (490) • MTH-NPT (int. & ext.) (494) • MTH-NPTF (int. & ext.) (494) • MTH-UN (external) (491) • MTH-UN (internal) (492) • MTH-W (int. & ext.) (493) MTH-F MTH MTSRH with MTH-F Finishing Inserts 476 ISCAR
