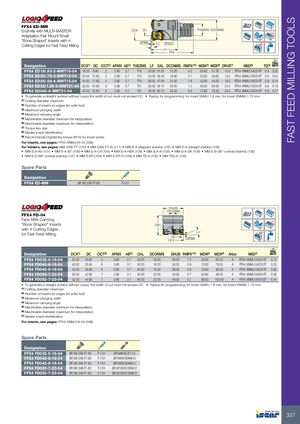

FAST FEED MILLING TOOLS FFX4 ED-MM DCX DC THSZMS DCONMS Endmills with MULTI-MASTER Rd° Adaptation that Mount Small "Bone Shaped" Inserts with 4 APMX 17˚ DRVS Cutting Edges for Fast Feed Milling LF OAL Designation DCX(1) DC CICT(2) APMX AE(3) THSZMS LF OAL DCONMS RMPX°(4) MDN(5) MDX(6) DRVS(7) MIID(8) TQ(9) kg FFX4 ED16/.63-2-MMT10-04 16.00 8.60 2 0.80 3.7 T10 20.00 31.30 15.20 4.3 24.60 31.00 13.0 FFX4 XNMU 040310T 0.9 0.02 FFX4 ED20/.78-3-MMT12-04 20.00 12.60 3 0.80 3.7 T12 25.00 38.30 18.80 2.7 32.60 39.00 15.0 FFX4 XNMU 040310T 0.9 0.04 FFX4 ED25/.98-4-MMT15-04 25.00 17.60 4 0.80 3.7 T15 30.00 47.00 24.00 1.8 42.60 49.00 19.0 FFX4 XNMU 040310T 0.9 0.14 FFX4 ED32/1.26-5-MMT21-04 32.00 24.60 5 0.80 3.7 T21 35.00 58.10 29.00 1.2 56.60 63.00 24.0 FFX4 XNMU 040310T 0.9 0.19 FFX4 ED040-6-MMT21-04 40.00 32.60 6 0.80 3.7 T21 40.00 63.10 30.00 0.9 72.60 79.00 24.0 FFX4 XNMU 040310T 0.9 0.27 • To generate a straight surface without cusps,the width of cut must not exceed DC • Radius for programming: for insert XNMU 1.8 mm, for insert XNMW 1.72 mm (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum plunging width (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Torque key size (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFX4 XNMU/W-04 (598) For holders, see pages: MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation FFX4 ED-MM SR M2.5X6-T7-60 T-7/51 DHUB DCONMS FFX4 FD-04 Face Mills Carrying Rd° "Bone Shaped" Inserts OAL with 4 Cutting Edges 17˚ for Fast Feed Milling DC APMX DCX kg Designation DCX(1) DC CICT(2) APMX AE(3) OAL DCONMS DHUB RMPX°(4) MDN(5) MDX(6) Arbor MIID(7) FFX4 FD032-5-16-04 32.00 24.60 5 0.80 3.7 40.00 16.00 38.00 1.2 56.60 63.00 A FFX4 XNMU 040310T 0.12 FFX4 FD040-6-16-04 40.00 32.60 6 0.80 3.7 40.00 16.00 38.00 0.9 72.60 79.00 A FFX4 XNMU 040310T 0.23 FFX4 FD042-6-16-04 42.00 34.60 6 0.80 3.7 40.00 16.00 38.00 0.8 76.60 83.00 A FFX4 XNMU 040310T 0.50 FFX4 FD050-7-22-04 50.00 42.60 7 0.80 3.7 40.00 22.00 48.00 0.7 92.60 99.00 A FFX4 XNMU 040310T 0.39 FFX4 FD052-7-22-04 52.00 44.60 7 0.80 3.7 40.00 22.00 48.00 0.7 96.60 103.00 A FFX4 XNMU 040310T 0.44 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert XNMU 1.8 mm, for insert XNMW 1.72 mm (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum plunging width (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification For inserts, see pages: FFX4 XNMU/W-04 (598) Spare Parts Designation FFX4 FD032-5-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25-D11.5 FFX4 FD040-6-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 FFX4 FD042-6-16-04 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 FFX4 FD050-7-22-04 SR M2.5X6-T7-60 T-7/51 SR M10X25 DIN912 FFX4 FD052-7-22-04 SR M2.5X6-T7-60 T-7/51 SR M10X25 DIN912 337
