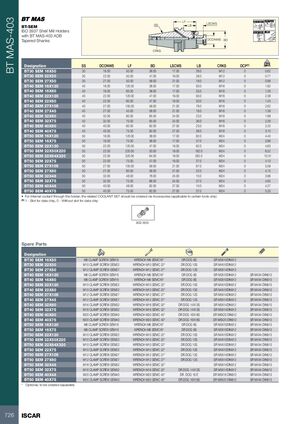

Державки для цилиндрических фрез ISO 3937 с коническими хвостовиками BT MAS-403 ADB

BT-SEM

ОбозначениеSSDCONWSLFBDLSCWSLBCRKSDCPкг
BT30 SEM 16X503016.0050.0038.0017.0028.0M1200.62
BT30 SEM 22X503022.0050.0047.0019.0028.0M1200.77
BT30 SEM 27X503027.0050.0058.0021.0018.0M1200.88
BT40 SEM 16X1204016.00120.0038.0017.0093.0M1601.82
BT40 SEM 16X604016.0060.0038.0017.0033.0M1601.29
BT40 SEM 22X1204022.00120.0047.0019.0093.0M1602.38
BT40 SEM 22X604022.0060.0047.0019.0033.0M1601.45
BT40 SEM 27X1054027.00105.0058.0021.0078.0M1602.62
BT40 SEM 27X454027.0045.0058.0021.0018.0M1601.39
BT40 SEM 32X604032.0060.0065.5024.0023.0M1601.88
BT40 SEM 32X754032.0075.0065.0024.0036.0M1602.26
BT40 SEM 40X604040.0060.0082.0027.0023.0M1602.25
BT40 SEM 40X754040.0075.0082.0027.0038.0M1603.10
BT50 SEM 16X1205016.00120.0038.0017.0082.0M2404.40
BT50 SEM 16X755016.0075.0038.0017.0037.0M2403.86
BT50 SEM 22X1205022.00120.0047.0019.0082.0M2404.63
BT50 SEM 22X50X2205022.00220.0050.0019.00182.0M2406.52
BT50 SEM 22X64X3205022.00320.0064.0019.00282.0M24010.51
BT50 SEM 22X755022.0075.0047.0019.0037.0M2404.10
BT50 SEM 27X1055027.00105.0058.0021.0067.0M2405.08
BT50 SEM 27X605027.0060.0058.0021.0022.0M2404.15
BT50 SEM 32X485032.0048.0078.0024.0010.0M2403.96
BT50 SEM 32X755032.0075.0066.0024.0037.0M2404.65
BT50 SEM 40X485040.0048.0082.0027.0010.0M2404.27
BT50 SEM 40X755040.0075.0082.0027.0037.0M2405.33
  • Для внутреннего охлаждения через держатель соответствующий набор охладителя должен быть заказан через Аксессуары (применимо только к определённым инструментам)
  • (1) 1 — гнездо для чипа данных, 0 — без гнезда для чипа данных

Запасные части

ОбозначениеВинт зажимаКлючСобачкаЗапасные винты
BT30 SEM 16X50M8 CLAMP SCREW SEM16WRENCH M8 SEMC16*DR.DOG 8SSR M3X10DIN912
BT30 SEM 22X50M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912
BT30 SEM 27X50M12 CLAMP SCREW SEM27WRENCH M12 SEMC 27*DR.DOG 12SSR M5X14DIN912
BT40 SEM 16X120M8 CLAMP SCREW SEM16WRENCH M8 SEMC16*DR.DOG 8SSR M3X10DIN912, SR M4X4 DIN913
BT40 SEM 16X60M8 CLAMP SCREW SEM16WRENCH M8 SEMC16*DR.DOG 8SSR M3X10DIN912, SR M4X4 DIN913
BT40 SEM 22X120M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912, SR M4X4 DIN913
BT40 SEM 22X60M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912, SR M4X4 DIN913
BT40 SEM 27X105M12 CLAMP SCREW SEM27WRENCH M12 SEMC 27*DR.DOG 12SSR M5X14DIN912, SR M4X4 DIN913
BT40 SEM 27X45M12 CLAMP SCREW SEM27WRENCH M12 SEMC 27*DR.DOG 12SSR M5X14DIN912, SR M4X4 DIN913
BT40 SEM 32X60M16 CLAMP SCREW SEM32WRENCH M16 SEMC 32*DR.DOG 14X13SSR M5X14DIN912, SR M4X4 DIN913
BT40 SEM 32X75M16 CLAMP SCREW SEM32WRENCH M16 SEMC 32*DR.DOG 14X13SSR M5X14DIN912, SR M4X4 DIN913
BT40 SEM 40X60M20 CLAMP SCREW SEM40WRENCH M20 SEMC 40*DR.DOG 16X18SSR M6X20 DIN912, SR M4X4 DIN913
BT40 SEM 40X75M20 CLAMP SCREW SEM40WRENCH M20 SEMC 40*DR.DOG 16X18SSR M6X20 DIN912, SR M4X4 DIN913
BT50 SEM 16X120M8 CLAMP SCREW SEM16WRENCH M8 SEMC16*DR.DOG 8SSR M3X10DIN912, SR M4X4 DIN913
BT50 SEM 16X75M8 CLAMP SCREW SEM16WRENCH M8 SEMC16*DR.DOG 8SSR M3X10DIN912, SR M4X4 DIN913
BT50 SEM 22X120M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912, SR M4X4 DIN913
BT50 SEM 22X50X220M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912, SR M4X4 DIN913
BT50 SEM 22X64X320M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912, SR M4X4 DIN913
BT50 SEM 22X75M10 CLAMP SCREW SEM22WRENCH M10 SEMC 22*DR.DOG 10SSR M4X10DIN912, SR M4X4 DIN913
BT50 SEM 27X105M12 CLAMP SCREW SEM27WRENCH M12 SEMC 27*DR.DOG 12SSR M5X14DIN912, SR M4X4 DIN913
BT50 SEM 27X60M12 CLAMP SCREW SEM27WRENCH M12 SEMC 27*DR.DOG 12SSR M5X14DIN912, SR M4X4 DIN913
BT50 SEM 32X48M16 CLAMP SCREW SEM32WRENCH M16 SEMC 32*SR M5X14DIN912, SR M4X4 DIN913
BT50 SEM 32X75M16 CLAMP SCREW SEM32WRENCH M16 SEMC 32*DR.DOG 14X13SSR M5X14DIN912, SR M4X4 DIN913
BT50 SEM 40X48M20 CLAMP SCREW SEM40WRENCH M20 SEMC 40*DR. DOG 16 ESR M5X16 DIN912, SR M4X4 DIN913
BT50 SEM 40X75M20 CLAMP SCREW SEM40WRENCH M20 SEMC 40*DR.DOG 16X18SSR M6X20 DIN912, SR M4X4 DIN913

* По отдельному заказу
