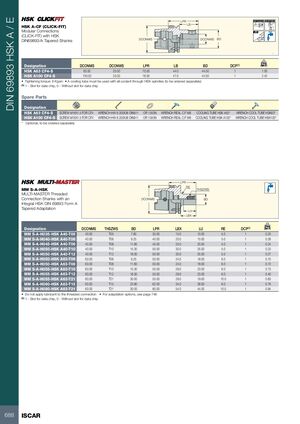

DIN 69893 HSK A / E LPR A 0.003 A 58-60 HRc LB HSK A-CF (CLICK-FIT) Modular Connections √N5 (CLICK-FIT) with HSK DCONMS DCONWS BD DIN69893/A Tapered Shanks . kg Designation DCONMS DCONWS LPR LB BD DCP(1) HSK A63 CF4-S 63.00 25.00 70.00 44.0 44.50 1 1.00 HSK A100 CF4-S 100.00 25.00 76.00 47.0 44.50 1 2.42 • Tightening torque: 6 Kgxm • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) (1) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation HSK A63 CF4-S SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 OR 15X3N WRENCH REAL C.F M8 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK A100 CF4-S SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 OR 15X3N WRENCH REAL C.F M8 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* * Optional, to be ordered separately LPR RE MM S-A-HSK THSZWS MULTI-MASTER Threaded Connection Shanks with an DCONMS BD Integral HSK DIN 69893 Form A Tapered Adaptation LU LBX kg Designation DCONMS THSZWS BD LPR LBX LU RE DCP(1) MM S-A-H035-HSK A40-T05 40.00 T05 7.60 35.00 15.0 10.00 5.0 1 0.20 MM S-A-H040-HSK A40-T06 40.00 T06 9.25 40.00 20.0 15.00 5.0 1 0.28 MM S-A-H045-HSK A40-T08 40.00 T08 11.60 45.00 25.0 20.00 5.0 1 0.24 MM S-A-H050-HSK A40-T10 40.00 T10 15.30 50.00 30.0 25.00 5.0 1 0.23 MM S-A-H050-HSK A40-T12 40.00 T12 18.30 50.00 30.0 25.00 5.0 1 0.27 MM S-A-H050-HSK A63-T06 63.00 T06 9.25 50.00 24.0 18.00 6.0 1 0.70 MM S-A-H050-HSK A63-T08 63.00 T08 11.60 50.00 24.0 18.00 6.0 1 0.72 MM S-A-H055-HSK A63-T10 63.00 T10 15.30 55.00 29.0 23.00 6.0 1 0.73 MM S-A-H055-HSK A63-T12 63.00 T12 18.30 55.00 29.0 23.00 6.0 1 0.40 MM S-A-H055-HSK A63-T21 63.00 T21 30.00 55.00 29.0 19.00 10.0 1 0.83 MM S-A-H060-HSK A63-T15 63.00 T15 23.90 62.00 34.0 28.00 6.0 1 0.76 MM S-A-H080-HSK A63-T21 63.00 T21 30.00 80.00 54.0 44.00 10.0 1 0.94 • Do not apply lubricant to the threaded connection • For adaptation options, see page 746 (1) 1 - Slot for data chip, 0 - Without slot for data chip 688 ISCAR
