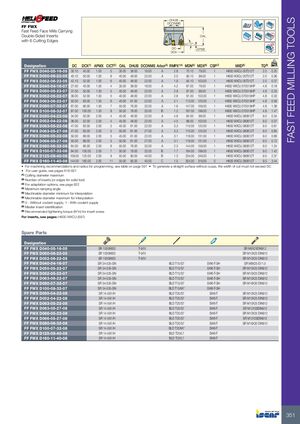

FAST FEED MILLING TOOLS DHUB DCONMS FF FWX Fast Feed Face Mills Carrying Rd° Double-Sided Inserts OAL with 6 Cutting Edges 17° DC APMX DCX kg Designation DC DCX(1) APMX CICT(2) OAL DHUB DCONMS Arbor(3) RMPX°(4) MDN(5) MDX(6) CSP(7) MIID(8) TQ(9) FF FWX D040-05-16-05 30.10 40.00 1.00 5 35.00 38.00 16.00 A 2.8 70.10 79.00 1 H600 WXCU 05T312T 2.0 0.20 FF FWX D050-06-22-05 40.10 50.00 1.00 6 40.00 48.00 22.00 A 2.0 90.10 99.00 1 H600 WXCU 05T312T 2.0 0.36 FF FWX D052-06-22-05 42.10 52.00 1.00 6 40.00 48.00 22.00 A 1.9 94.10 103.00 1 H600 WXCU 05T312T 2.0 0.37 FF FWX D040-04-16-07 27.00 40.00 1.50 4 35.00 38.00 16.00 A 4.2 67.00 79.00 1 H600 WXCU 070515HP 4.8 0.18 FF FWX D050-05-22-07 37.00 50.00 1.50 5 40.00 48.00 22.00 A 2.9 87.00 99.00 1 H600 WXCU 070515HP 4.8 0.33 FF FWX D052-05-22-07 39.00 52.00 1.50 5 40.00 48.00 22.00 A 2.8 91.00 103.00 1 H600 WXCU 070515HP 4.8 0.33 FF FWX D063-06-22-07 50.00 63.00 1.50 6 40.00 61.00 22.00 A 2.1 113.00 125.00 1 H600 WXCU 070515HP 4.8 0.58 FF FWX D080-07-32-07 67.00 80.00 1.50 7 55.00 76.00 32.00 A 1.6 147.00 159.00 1 H600 WXCU 070515HP 4.8 1.38 FF FWX D100-08-32-07 87.00 100.00 1.50 8 50.00 78.00 32.00 B 1.2 187.00 199.00 1 H600 WXCU 070515HP 4.8 1.47 FF FWX D050-04-22-08 34.00 50.00 2.00 4 45.00 48.00 22.00 A 4.8 84.00 99.00 1 H600 WXCU 080612T 9.0 0.34 FF FWX D052-04-22-08 36.00 52.00 2.00 4 45.00 48.00 22.00 A 4.5 88.00 103.00 1 H600 WXCU 080612T 9.0 0.37 FF FWX D063-05-22-08 47.00 63.00 2.00 5 45.00 61.00 22.00 A 3.3 110.00 125.00 1 H600 WXCU 080612T 9.0 0.61 FF FWX D063-05-27-08 47.00 63.00 2.00 5 50.00 61.00 27.00 A 3.3 110.00 125.00 1 H600 WXCU 080612T 9.0 0.65 FF FWX D066-05-22-08 50.00 66.00 2.00 5 45.00 61.00 22.00 A 3.1 116.00 131.00 1 H600 WXCU 080612T 9.0 0.68 FF FWX D066-05-27-08 50.00 66.00 2.00 5 50.00 61.00 27.00 A 3.1 116.00 131.00 1 H600 WXCU 080612T 9.0 0.72 FF FWX D080-06-32-08 64.00 80.00 2.00 6 55.00 76.00 32.00 A 2.3 144.00 159.00 1 H600 WXCU 080612T 9.0 1.24 FF FWX D100-07-32-08 84.00 100.00 2.00 7 50.00 78.00 32.00 B 1.7 184.00 199.00 1 H600 WXCU 080612T 9.0 1.42 FF FWX D125-09-40-08 109.00 125.00 2.00 9 55.00 90.00 40.00 B 1.3 234.00 249.00 1 H600 WXCU 080612T 9.0 2.37 FF FWX D160-11-40-08 144.00 160.00 2.00 11 55.00 95.00 40.00 C 1.0 304.00 319.00 0 H600 WXCU 080612T 9.0 3.44 • For machining recommendations and radius for programming, see table on page 597 • To generate a straight surface without cusps, the width of cut must not exceed DC • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) For adaptation options, see page 622 (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) 0 - Without coolant supply, 1 - With coolant supply (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw For inserts, see pages: H600 WXCU (597) Spare Parts Designation FF FWX D040-05-16-05 SR 10508600 T-9/51 SR M8X25DIN912 FF FWX D050-06-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 FF FWX D052-06-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 FF FWX D040-04-16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M8X25-D11.5 FF FWX D050-05-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FWX D052-05-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FWX D063-06-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FWX D080-07-32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X30 DIN912 FF FWX D100-08-32-07 SR 34-535-SN BLD T15/M7 SW6-T-SH FF FWX D050-04-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D052-04-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D063-05-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D063-05-27-08 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 FF FWX D066-05-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D066-05-27-08 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 FF FWX D080-06-32-08 SR 14-591/H BLD T20/S7 SW6-T SR M16X30 DIN912 FF FWX D100-07-32-08 SR 14-591/H BLD T20/M7 SW6-T FF FWX D125-09-40-08 SR 14-591/H BLD T20/L7 SW6-T FF FWX D160-11-40-08 SR 14-591/H BLD T20/L7 SW6-T 351
