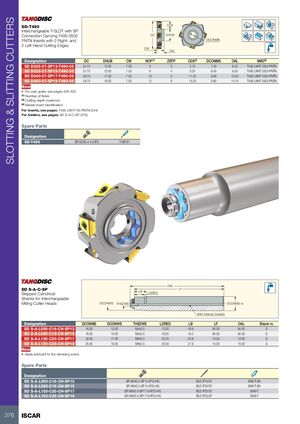

SLOTTING & SLITTING CUTTERS CDX SD-T490 Interchangeable T-SLOT with SP Connection Carrying T490 0502 DC DHUB PNTN Inserts with 2 Right- and DCONMS 2 Left-Hand Cutting Edges CW OAL Designation DC DHUB CW NOF(1) ZEFP CDX(2) DCONMS OAL MIID(3) SD D025-07-SP13-T490-05 24.70 13.00 7.00 6 3 5.75 7.50 8.25 T490 LNHT 0502-PNTN SD D032-07-SP15-T490-05 31.70 15.00 7.00 8 4 8.25 8.40 9.50 T490 LNHT 0502-PNTN SD D040-07-SP17-T490-05 39.70 17.00 7.00 10 5 11.25 9.80 10.50 T490 LNHT 0502-PNTN SD D050-07-SP19-T490-05 49.70 19.00 7.00 12 6 15.25 9.80 14.10 T490 LNHT 0502-PNTN New • For user guide, see pages 426-432 (1) Number of flutes (2) Cutting depth maximum (3) Master insert identification For inserts, see pages: T490 LNHT 05-PNTN (544) For holders, see pages: SD S-A-C-SP (376) Spare Parts Designation SD-T490 SR M2X0.4-4.8 IP6 T-6IP/51 OAL SD S-A-C-SP LB LF Stepped Cylindrical LDRED Shanks for Interchangeable Milling Cutter Heads DCONWS THSZWS DCONMS h6 With Internal Coolant Designation DCONMS DCONWS THSZWS LDRED LB LF OAL Shank m. SD S-A-L090-C16-CH-SP13 16.00 13.00 M4x0.5 13.00 16.6 90.00 94.00 S SD S-A-L090-C16-CH-SP15 16.00 15.00 M5x0.5 16.00 18.2 90.00 94.00 S SD S-A-L130-C20-CH-SP17 20.00 17.00 M6x0.5 20.20 23.8 13.00 13.00 S SD S-A-L150-C25-CH-SP19 25.00 19.00 M6x0.5 20.00 27.9 15.00 15.00 S New • Apply lubricant to the clamping screw Spare Parts Designation SD S-A-L090-C16-CH-SP13 SR M4X0.5-SP13-IP15-HG BLD IP15/S7 SW6-T-SH SD S-A-L090-C16-CH-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L130-C20-CH-SP17 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T SD S-A-L150-C25-CH-SP19 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T 376 ISCAR
