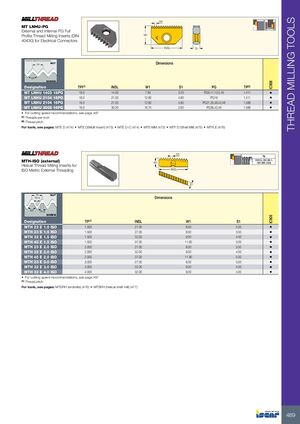

THREAD MILLING TOOLS TP MT LNHU-PG External and Internal PG Full Profile Thread Milling Inserts (DIN W1 40430) for Electrical Connectors INSL S1 Used for electrical connectors TP NUT Dimensions 80˚ SCREW IC908 Designation TPI(1) INSL W1 S1 PG TP(2) MT LNHU 1403 18PG 18.0 14.00 7.90 3.20 PG9,11,13.5,16 1.411 • MT LNHU 2104 18PG 18.0 21.00 12.60 4.80 PG16 1.411 • MT LNHU 2104 16PG 16.0 21.00 12.60 4.80 PG21,29,36,42,48 1.588 • MT LNHU 3005 16PG 16.0 30.00 16.70 5.60 PG36,42,48 1.588 • • For cutting speed recommendations, see page 497 (1) Threads per inch (2) Thread pitch For tools, see pages: MTE D (474) • MTE D(Multi Insert) (475) • MTE D-C (474) • MTE-MM (473) • MTF D (Shell Mill) (475) • MTFLE (476) TP 6g MTH-ISO (external) W1 DIN13, ISO 68-1, ISO 965 (1&2) Helical Thread Milling Inserts for ISO Metric External Threading lNSL S1 TP NUT TP/4 Dimensions 60˚ TP/8 SCREW IC908 Designation TP(1) INSL W1 S1 MTH 23 E 1.0 ISO 1.000 27.00 8.00 3.50 • MTH 23 E 1.5 ISO 1.500 27.00 8.00 3.50 • MTH 32 E 1.5 ISO 1.500 32.00 9.00 4.00 • MTH 45 E 1.5 ISO 1.500 37.00 11.90 5.00 • MTH 23 E 2.0 ISO 2.000 27.00 8.00 3.50 • MTH 32 E 2.0 ISO 2.000 32.00 9.00 4.00 • MTH 45 E 2.0 ISO 2.000 37.00 11.90 5.00 • MTH 23 E 3.0 ISO 3.000 27.00 8.00 3.50 • MTH 32 E 3.0 ISO 3.000 32.00 9.00 4.00 • MTH 32 E 4.0 ISO 4.000 32.00 9.00 4.00 • • For cutting speed recommendations, see page 497 (1) Thread pitch For tools, see pages: MTSRH (endmills) (476) • MTSRH (helical shell mill) (477) 489
