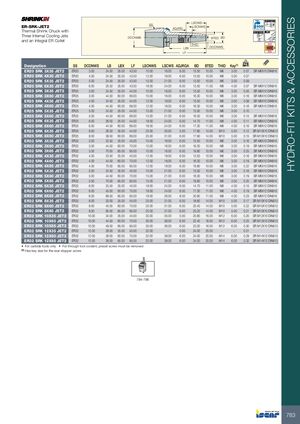

Фрезерные инструменты Iscar 2026 - страница 785

HYDRO-FIT KITS & ACCESSORIES A 0.003 A LSCWS SS ER-SRK-JET2 ADJRG LSCNWS Bar Max Thermal Shrink Chuck with 50-52 HRc √N5 Three Internal Cooling Jets DCONMS BTED BD and an Integral ER Collet 4˚ THID LBX DCONWS LF kg Designation SS DCONWS LB LBX LF LSCNWS LSCWS ADJRGA BD BTED THID Key(1) ER20 SRK 3X35 JET2 ER20 3.00 24.50 35.00 43.50 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916 ER20 SRK 4X35 JET2 ER20 4.00 24.50 35.00 43.50 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.07 ER20 SRK 5X35 JET2 ER20 5.00 24.50 35.00 43.50 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.09 ER20 SRK 6X35 JET2 ER20 6.00 25.50 35.00 43.50 18.00 24.00 6.00 13.50 11.00 M8 4.00 0.07 SR M8X12 DIN916 ER25 SRK 3X35 JET2 ER25 3.00 24.50 35.00 44.00 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.55 SR M6X10 DIN916 ER25 SRK 3X60 JET2 ER25 3.00 44.50 60.00 69.00 10.00 16.00 6.00 16.30 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER25 SRK 4X35 JET2 ER25 4.00 24.50 35.00 44.00 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.58 SR M6X10 DIN916 ER25 SRK 4X60 JET2 ER25 4.00 44.50 60.00 69.00 12.00 18.00 6.00 16.30 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER25 SRK 5X35 JET2 ER25 5.00 24.50 35.00 44.00 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.10 ER25 SRK 5X60 JET2 ER25 5.00 44.50 60.00 69.00 15.00 21.00 6.00 16.30 10.00 M6 3.00 0.15 SR M6X10 DIN916 ER25 SRK 6X35 JET2 ER25 6.00 26.00 35.00 44.00 18.00 24.00 6.00 14.70 11.00 M8 4.00 0.11 SR M8X12 DIN916 ER25 SRK 6X60 JET2 ER25 6.00 44.50 60.00 69.00 18.00 24.00 6.00 17.30 11.00 M8 4.00 0.16 SR M8X12 DIN916 ER25 SRK 8X35 JET2 ER25 8.00 26.50 35.00 44.00 25.00 30.00 5.00 17.80 14.00 M10 5.00 0.12 SR M10X10 DIN913 ER25 SRK 8X60 JET2 ER25 8.00 39.50 60.00 69.00 25.00 31.00 6.00 17.90 14.00 M10 5.00 0.15 SR M10X10 DIN913 ER32 SRK 3X35 JET2 ER32 3.00 22.50 35.00 45.00 10.00 16.00 6.00 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER32 SRK 3X60 JET2 ER32 3.00 44.50 60.00 70.00 10.00 16.00 6.00 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916 ER32 SRK 3X85 JET2 ER32 3.00 70.00 85.00 95.00 10.00 16.00 6.00 19.80 10.00 M6 3.00 0.25 SR M6X10 DIN916 ER32 SRK 4X35 JET2 ER32 4.00 23.50 35.00 45.00 12.00 18.00 6.00 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER32 SRK 4X60 JET2 ER32 4.00 44.50 60.00 70.00 12.00 18.00 6.00 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916 ER32 SRK 4X85 JET2 ER32 4.00 70.00 85.00 95.00 12.00 18.00 6.00 19.80 10.00 M6 3.00 0.22 SR M6X10 DIN916 ER32 SRK 5X35 JET2 ER32 5.00 24.50 35.00 45.00 15.00 21.00 6.00 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916 ER32 SRK 5X60 JET2 ER32 5.00 44.50 60.00 70.00 15.00 21.00 6.00 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916 ER32 SRK 5X85 JET2 ER32 5.00 70.00 85.00 95.00 15.00 21.00 6.00 19.80 10.00 M6 3.00 0.25 SR M6X10 DIN916 ER32 SRK 6X35 JET2 ER32 6.00 25.50 35.00 45.00 18.00 24.00 6.00 14.70 11.00 M8 4.00 0.15 SR M8X12 DIN916 ER32 SRK 6X60 JET2 ER32 6.00 45.00 60.00 70.00 18.00 24.00 6.00 17.30 11.00 M8 4.00 0.19 SR M8X12 DIN916 ER32 SRK 6X85 JET2 ER32 6.00 69.50 85.00 95.00 18.00 26.00 8.00 20.80 11.00 M8 4.00 0.23 SR M8X12 DIN916 ER32 SRK 8X35 JET2 ER32 8.00 33.00 35.00 45.00 25.00 31.00 6.00 18.80 14.00 M10 5.00 0.17 SR M10X10 DIN913 ER32 SRK 8X60 JET2 ER32 8.00 45.00 60.00 70.00 25.00 31.00 6.00 20.40 14.00 M10 5.00 0.22 SR M10X10 DIN913 ER32 SRK 8X85 JET2 ER32 8.00 65.00 85.00 95.00 25.00 31.00 6.00 23.20 14.00 M10 5.00 0.21 SR M10X10 DIN913 ER32 SRK 10X35 JET2 ER32 10.00 34.00 35.00 45.00 30.00 35.00 5.00 20.80 16.00 M12 6.00 0.20 SR M12X10 DIN913 ER32 SRK 10X60 JET2 ER32 10.00 44.50 60.00 70.00 30.00 36.00 6.00 22.40 16.00 M12 6.00 0.25 SR M12X10 DIN913 ER32 SRK 10X85 JET2 ER32 10.00 49.50 85.00 95.00 30.00 36.00 6.00 23.00 16.00 M12 6.00 0.30 SR M12X10 DIN913 ER32 SRK 12X35 JET2 ER32 12.00 28.00 35.00 45.00 32.00 - 0.00 24.00 20.00 - - 0.21 ER32 SRK 12X60 JET2 ER32 12.00 28.00 60.00 70.00 32.00 38.00 6.00 24.00 20.00 M14 6.00 0.29 SR M14X12 DIN913 ER32 SRK 12X85 JET2 ER32 12.00 28.00 85.00 95.00 32.00 38.00 6.00 24.00 20.00 M14 6.00 0.32 SR M14X12 DIN913 • For carbide tools only • For through tool coolant, preset screw must be removed (1) Hex key size for the rear stopper screw 784-786 783
