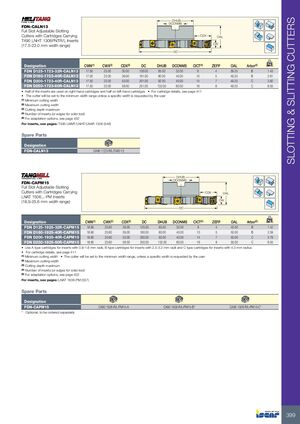

SLOTTING & SLITTING CUTTERS DHUB DCONMS FDN-CALN13 Full Slot Adjustable Slotting Cutters with Cartridges Carrying CDX OAL T490 LNHT 1306PNTR/L Inserts CW (17.5-23.0 mm width range) DC kg Designation CWN(1) CWX(2) CDX(3) DC DHUB DCONMS CICT(4) ZEFP OAL Arbor(5) FDN D125-1723-32R-CALN13 17.50 23.00 30.00 126.00 65.00 32.00 8 4 39.25 B 1.43 FDN D160-1723-40R-CALN13 17.50 23.00 39.00 161.00 80.00 40.00 10 5 49.25 B 2.61 FDN D200-1723-40R-CALN13 17.50 23.00 53.00 201.00 92.00 40.00 14 7 49.25 C 3.82 FDN D250-1723-60R-CALN13 17.50 23.00 59.00 251.00 132.00 60.00 16 8 49.25 C 6.55 • Half of the inserts are used on right-hand cartridges and half on left-hand cartridges • For cartridge details, see page 411 • The cutter will be set to the minimum width range unless a specific width is requested by the user (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation options, see page 432 For inserts, see pages: T490 LNMT/LNHT/LNAR 1306 (546) Spare Parts Designation FDN-CALN13 CA90 1723-R/L-T490-13 DHUB DCONMS FDN-CAPM15 Full Slot Adjustable Slotting Cutters with Cartridges Carrying CDX OAL LNAT 1506...-PM Inserts CW (18.9-25.6 mm width range) DC kg Designation CWN(1) CWX(2) CDX(3) DC DHUB DCONMS CICT(4) ZEFP OAL Arbor(5) FDN D125-1925-32R-CAPM15 18.90 25.60 29.00 125.00 65.00 32.00 8 4 40.00 B 1.42 FDN D160-1925-40R-CAPM15 18.90 25.60 39.00 160.00 80.00 40.00 10 5 50.00 B 2.59 FDN D200-1925-40R-CAPM15 18.90 25.60 53.00 200.00 92.00 40.00 14 7 50.00 C 3.79 FDN D250-1925-60R-CAPM15 18.90 25.60 58.00 250.00 132.00 60.00 16 8 50.00 C 6.55 • Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for inserts with 4.0 mm radius • For cartridge details, see page 411 (1) Minimum cutting width • The cutter will be set to the minimum width range, unless a specific width is requested by the user (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation options, see page 432 For inserts, see pages: LNAT 1506-PM (557) Spare Parts Designation FDN-CAPM15 CA90 1928-R/L-PM15-A CA90 1928-R/L-PM15-B* CA90 1928-R/L-PM15-C* * Optional, to be ordered separately 399
