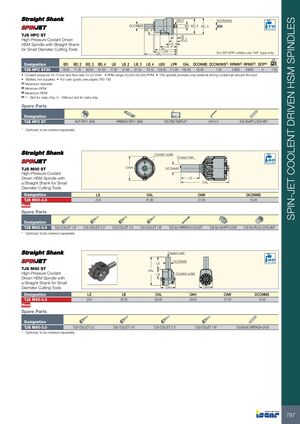

SPIN-JET COOLENT DRIVEN HSM SPINDLES ER11 DCONXWS DCONMS BD BD_2 BD_3 70 Bar Max BD_4 TJS HPC ST LB High-Pressure Coolant Driven LB_2 HSM Spindle with Straight Shank LB_3 LB_4 for Small Diameter Cutting Tools LBX LPR For ER-SPR collets use "AA" type only OAL Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONMS DCONXWS(1) RPMN(2) RPMX(3) DCP(4) kg TJS HPC ST20 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 105.30 111.84 155.00 20.00 7.00 25000 45000 0 1.50 • Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS HPC ST NUT ER11 GHS WRENCH ER11 SMS TJS TSD DISPLAY* HW 2.0 TJS SHAFT LOCK KEY * Optional, to be ordered separately Coolant outlet Coolant inlet 40 Bar Max OAW TJS M00 ST DCONMS High-Pressure Coolant Driven HSM Spindle with LS a Straight Shank for Small OAL Diameter Cutting Tools Designation LS OAL OAW DCONMS TJS M00-3.0 23.8 61.80 31.00 10.00 New Spare Parts Designation TJS M00-3.0 TJS-COLLET 1.6* TJS-COLLET 2.0* TJS-COLLET 3.0 TJS-COLLET 1/8* TJS MJ-WRENCH-COLLET TJS MJ-SHAFT-LOCK TJS MJ-PLUG COOLANT * Optional, to be ordered separately Coolant inlet DCONMS 40 Bar Max LS TJS M90 ST OAL High-Pressure Coolant LB Coolant outlet Driven HSM Spindle with a Straight Shank for Small Diameter Cutting Tools OAH OAW Designation LS LB OAL OAH OAW DCONMS TJS M90-3.0 25.0 20.00 58.00 29.00 27.00 10.00 New Spare Parts Designation TJS M90-3.0 TJS-COLLET 3.0 TJS-COLLET 1.6* TJS-COLLET 2.0* TJS-COLLET 1/8* TJS MJ90 WRENCH-2430 * Optional, to be ordered separately 797
