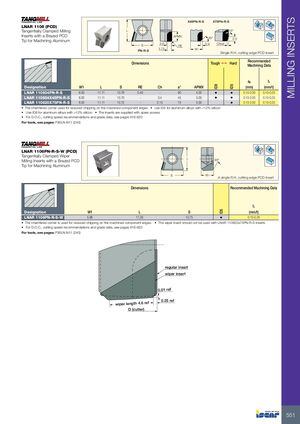

MILLING INSERTS X45PN-R-S X75PN-R-S LNAR 1106 (PCD) Tangentially Clamped Milling L 15° Inserts with a Brazed PCD APMX 45° 2.0 Tip for Machining Aluminum 2.6 0.4 Chxa° S RE 1.75 W1 PN-R-S Single R.H. cutting edge PCD insert Recommended Dimensions Tough 1 Hard Machining Data ap fz ID8 ID5 Designation W1 L S RE Ch a° APMX (mm) (mm/t) LNAR 110604PN-R-S 6.00 11.11 10.76 0.40 - 90 5.00 • • 0.10-2.00 0.10-0.25 LNAR 110604X45PN-R-S 6.00 11.11 10.70 - 0.4 45 5.00 • • 0.10-2.00 0.10-0.25 LNAR 110620X75PN-R-S 6.00 11.11 10.72 - 0.15 75 5.00 • 0.10-2.00 0.10-0.25 • The chamfered corner used for reduced chipping on the machined component edges • Use ID5 for aluminum alloys with <12% silicon • Use ID8 for aluminum alloys with >12% silicon • The inserts are supplied with spare screws • For D.O.C., cutting speed recommendations and grade data, see pages 616-620 For tools, see pages: F90LN-N11 (240) LNAR 1106PN-R-S-W (PCD) Tangentially Clamped Wiper L 30º Milling Inserts with a Brazed PCD Tip for Machining Aluminum S W1 A single R.H. cutting edge PCD insert Dimensions Recommended Machining Data fz ID5 Designation W1 L S (mm/t) LNAR 1106PN-R-S-W 5.98 11.26 10.75 • 0.10-0.25 • The chamfered corner is used for reduced chipping on the machined component edges. • The wiper insert should not be used with LNAR 110620x75PN-R-S inserts • For D.O.C., cutting speed recommendations and grade data, see pages 616-620 For tools, see pages: F90LN-N11 (240) regular insert wiper insert 0.01 ref 0.25 ref wiper length 4.6 ref D (cutter) 551
