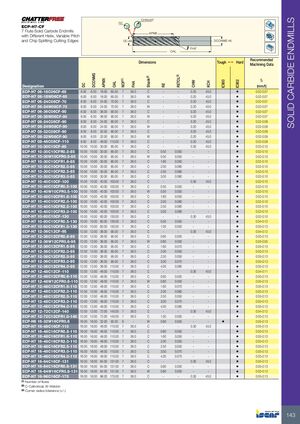

Фрезерные инструменты Iscar 2026 - страница 145

Предыдущая страница Следующая страница

Навигация

Концевые фрезы из твердого сплава

ECP-H7-CF

7-зубые концевые фрезы из твердого сплава с различной спиралью, переменным шагом и режущими кромками с колебательной стружкой

Размеры и рекомендуемые режимы обработки

Обозначение DC d Длина
фрезы		 OAL Кол-во
зубьев		 Параметр Тип
хвостовика		 Допуск
радиуса		 Допуск CHW Угол
спирали		 Рекомендуемо
Жесткие/Твердые		 fz
(мм/зуб)
ECP-H7 06-18C06CF-65 6.00 6.00 18.00 65.00 7 36.0 C – – 0.20 45.0 • 0.02–0.07
ECP-H7 06-18W06CF-65 6.00 6.00 18.00 65.00 7 36.0 W – – 0.20 45.0 • 0.02–0.07
ECP-H7 06-24C06CF-70 6.00 6.00 24.00 70.00 7 36.0 C – – 0.20 45.0 • 0.02–0.07
ECP-H7 06-24W06CF-70 6.00 6.00 24.00 70.00 7 36.0 W – – 0.20 45.0 • 0.02–0.07
ECP-H7 06-36C06CF-90 6.00 6.00 36.00 90.00 7 36.0 C – – 0.20 45.0 • 0.02–0.07
ECP-H7 06-36W06CF-90 6.00 6.00 36.00 90.00 7 36.0 W – – 0.20 45.0 • 0.02–0.07
ECP-H7 08-24C08CF-90 8.00 8.00 24.00 90.00 7 36.0 C – – 0.20 45.0 • 0.02–0.08
ECP-H7 08-24W08CF-90 8.00 8.00 24.00 90.00 7 36.0 W – – 0.20 45.0 • 0.02–0.08
ECP-H7 08-32C08CF-90 8.00 8.00 32.00 90.00 7 36.0 C – – 0.20 45.0 • 0.02–0.09
ECP-H7 08-32W08CF-90 8.00 8.00 32.00 90.00 7 36.0 W – – 0.20 45.0 • 0.02–0.09
ECP-H7 08-48C08CF-110 8.00 8.00 48.00 110.00 7 36.0 C – – 0.20 45.0 • 0.02–0.08
ECP-H7 10-30C10CF-85 10.00 10.00 30.00 85.00 7 36.0 C – – 0.30 45.0 • 0.02–0.10
ECP-H7 10-30C10CFR0.5-85 10.00 10.00 30.00 85.00 7 36.0 C 0.50 0.050 – – • 0.02–0.10
ECP-H7 10-30W10CFR0.5-85 10.00 10.00 30.00 85.00 7 36.0 W 0.50 0.050 – – • 0.02–0.10
ECP-H7 10-30C10CFR1.6-85 10.00 10.00 30.00 85.00 7 36.0 C 1.60 0.050 – – • 0.02–0.10
ECP-H7 10-30C10CFR2.0-85 10.00 10.00 30.00 85.00 7 36.0 C 2.00 0.080 – – • 0.02–0.10
ECP-H7 10-30C10CFR2.5-85 10.00 10.00 30.00 85.00 7 36.0 C 2.50 0.080 – – • 0.02–0.10
ECP-H7 10-30C10CFR3.0-85 10.00 10.00 30.00 85.00 7 36.0 C 3.00 0.080 – – • 0.02–0.10
ECP-H7 10-40C10CF-100 10.00 10.00 40.00 100.00 7 36.0 C – – 0.30 45.0 • 0.02–0.10
ECP-H7 10-40C10CFR0.5-100 10.00 10.00 40.00 100.00 7 36.0 C 0.50 0.050 – – • 0.02–0.10
ECP-H7 10-40W10CFR0.5-100 10.00 10.00 40.00 100.00 7 36.0 W 0.50 0.050 – – • 0.02–0.10
ECP-H7 10-40C10CFR1.6-100 10.00 10.00 40.00 100.00 7 36.0 C 1.60 0.050 – – • 0.02–0.10
ECP-H7 10-40C10CFR2.0-100 10.00 10.00 40.00 100.00 7 36.0 C 2.00 0.080 – – • 0.02–0.10
ECP-H7 10-40C10CFR2.5-100 10.00 10.00 40.00 100.00 7 36.0 C 2.50 0.080 – – • 0.02–0.10
ECP-H7 10-40C10CFR3.0-100 10.00 10.00 40.00 100.00 7 36.0 C 3.00 0.080 – – • 0.02–0.10
ECP-H7 10-60C10CF-130 10.00 10.00 60.00 130.00 7 36.0 C – – 0.30 45.0 • 0.02–0.10
ECP-H7 10-60C10CFR0.5-130 10.00 10.00 60.00 130.00 7 36.0 C 0.50 0.050 – – • 0.04–0.12
ECP-H7 10-60C10CFR1.0-130 10.00 10.00 60.00 130.00 7 36.0 C 1.00 0.050 – – • 0.05–0.13
ECP-H7 12-36C12CF-95 12.00 12.00 36.00 95.00 7 36.0 C – – 0.30 45.0 • 0.04–0.12
ECP-H7 12-36C12CFR0.6-95 12.00 12.00 36.00 95.00 7 36.0 C 0.60 0.050 – – • 0.05–0.13
ECP-H7 12-36W12CFR0.6-95 12.00 12.00 36.00 95.00 7 36.0 W 0.60 0.050 – – • 0.05–0.05
ECP-H7 12-36C12CFR1.6-95 12.00 12.00 36.00 95.00 7 36.0 C 1.60 0.070 – – • 0.05–0.13
ECP-H7 12-36C12CFR2.0-95 12.00 12.00 36.00 95.00 7 36.0 C 2.00 0.050 – – • 0.05–0.13
ECP-H7 12-36C12CFR2.5-95 12.00 12.00 36.00 95.00 7 36.0 C 2.50 0.050 – – • 0.05–0.13
ECP-H7 12-36C12CFR3.0-95 12.00 12.00 36.00 95.00 7 36.0 C 3.00 0.070 – – • 0.05–0.13
ECP-H7 12-36C12CFR4.0-95 12.00 12.00 36.00 110.00 7 36.0 C 4.00 0.080 – – • 0.05–0.13
ECP-H7 12-48C12CF-110 12.00 12.00 48.00 110.00 7 36.0 C – – 0.30 45.0 • 0.04–0.11
ECP-H7 12-48C12CFR0.6-110 12.00 12.00 48.00 110.00 7 36.0 C 0.60 0.050 – – • 0.05–0.13
ECP-H7 12-48W12CFR0.6-110 12.00 12.00 48.00 110.00 7 36.0 W 0.60 0.050 – – • 0.05–0.13
ECP-H7 12-48C12CFR1.6-110 12.00 12.00 48.00 110.00 7 36.0 C 1.60 0.070 – – • 0.05–0.13
ECP-H7 12-48C12CFR2.0-110 12.00 12.00 48.00 110.00 7 36.0 C 2.00 0.060 – – • 0.05–0.13
ECP-H7 12-48C12CFR2.5-110 12.00 12.00 48.00 110.00 7 36.0 C 2.50 0.050 – – • 0.05–0.13
ECP-H7 12-48C12CFR3.0-110 12.00 12.00 48.00 110.00 7 36.0 C 3.00 0.070 – – • 0.05–0.13
ECP-H7 12-48C12CFR4.0-110 12.00 12.00 48.00 110.00 7 36.0 C 4.00 0.080 – – • 0.05–0.13
ECP-H7 12-72C12CF-140 12.00 12.00 72.00 140.00 7 36.0 C – – 0.30 45.0 • 0.04–0.12
ECP-H7 12-72C12CFR1.0-140 12.00 12.00 72.00 140.00 7 36.0 C 1.00 0.050 – – • 0.05–0.13
ECP-H6 16-32W16CFR0.8 16.00 16.00 32.00 92.00 6 – W 0.80 0.050 – – • 0.05–0.13
ECP-H7 16-48C16CF-110 16.00 16.00 48.00 110.00 7 36.0 C – – 0.30 45.0 • 0.05–0.13
ECP-H7 16-48C16CFR0.8-110 16.00 16.00 48.00 110.00 7 36.0 C 0.80 0.050 – – • 0.05–0.13
ECP-H7 16-48C16CFR1.6-110 16.00 16.00 48.00 110.00 7 36.0 C 1.60 0.050 – – • 0.05–0.13
ECP-H7 16-48C16CFR2.0-110 16.00 16.00 48.00 110.00 7 36.0 C 2.00 0.050 – – • 0.05–0.13
ECP-H7 16-48C16CFR2.5-110 16.00 16.00 48.00 110.00 7 36.0 C 2.50 0.050 – – • 0.05–0.13
ECP-H7 16-48C16CFR3.0-110 16.00 16.00 48.00 110.00 7 36.0 C 3.00 0.070 – – • 0.05–0.13
ECP-H7 16-48C16CFR4.0-110 16.00 16.00 48.00 110.00 7 36.0 C 4.00 0.070 – – • 0.05–0.13
ECP-H7 16-64C16CF-131 16.00 16.00 64.00 131.00 7 36.0 C – – 0.30 45.0 • 0.05–0.13
ECP-H7 16-64C16CFR0.8-131 16.00 16.00 64.00 131.00 7 36.0 C 0.80 0.050 – – • 0.05–0.13
ECP-H7 16-64W16CFR0.8-131 16.00 16.00 64.00 131.00 7 36.0 W 0.80 0.050 – – • 0.05–0.13
ECP-H7 16-96C16CF-175 16.00 16.00 96.00 175.00 7 36.0 C – – 0.30 45.0 • 0.05–0.13
  • (1) Количество зубьев
  • (2) C-цилиндрический, W-Weldon
  • (3) Допуск радиуса кромки (+/–)
