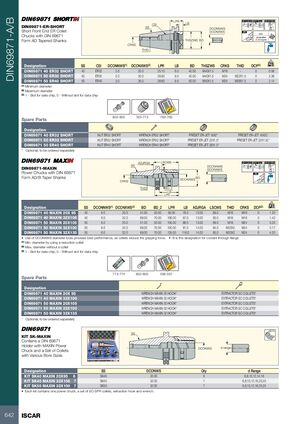

DIN69871-A/B LPR A 0.003 A AT3 Taper 58-60 HRc CSI LB DIN69871-ER-SHORT SS DCONNWS Short Front End ER Collet DCONXWS √N5 G2.5 Chucks with DIN 69871 20,000 RPM Form AD Tapered Shanks THSZWS BD or U<1.0 gmm CRKS THID kg Designation SS CSI DCONNWS(1) DCONXWS(2) LPR LB BD THSZWS CRKS THID DCP(3) DIN69871 40 ER32 SHORT 40 ER32 2.0 20.0 25.10 6.0 40.00 M40X1.5 M16 - 0 0.58 DIN69871 50 ER32 SHORT 50 ER32 2.0 20.0 28.60 9.5 40.00 M40X1.5 M24 M22X1.5 0 2.38 DIN69871 50 ER40 SHORT 50 ER40 3.0 26.0 28.60 9.5 50.00 M50X1.5 M24 M28X1.5 0 2.14 (1) Minimum diameter (2) Maximum diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 763-773 763-765 Spare Parts Designation DIN69871 40 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 16X2* PRESET ER-JET 16X2L* DIN69871 50 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L* DIN69871 50 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* PRESET ER-JET 28X1.5* * Optional, to be ordered separately ADJRGA LSCWS A 0.003 A AT3 Taper 58-60 HRc SS DCONNWS DIN69871-MAXIN DCONXWS Power Chucks with DIN 69871 √N5 Form AD/B Taper Shanks DCONXWS BD CRKS THID BD_2 LB LPR kg Designation SS DCONNWS(1) DCONXWS(2) BD BD_2 LPR LB ADJRGA LSCWS THID CRKS DCP(3) DIN69871 40 MAXIN 20X 95 40 6.0 20.0 51.00 53.00 95.00 76.0 13.00 69.0 M16 M16 0 1.20 DIN69871 40 MAXIN 32X106 40 6.0 32.0 69.00 70.00 106.00 87.0 13.00 83.0 M16 M16 0 1.42 DIN69871 50 MAXIN 20X105 50 6.0 20.0 51.00 53.00 105.00 86.0 13.00 69.0 M16 M24 0 3.20 DIN69871 50 MAXIN 32X100 50 6.0 32.0 69.00 70.00 100.00 81.0 14.00 84.0 M20X2 M24 0 3.17 DIN69871 50 MAXIN 32X135 50 6.0 32.0 69.00 70.00 135.00 116.0 14.00 85.0 M20X2 M24 0 4.20 • Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. • B is the designation for coolant through flange . (1) Min. diameter by using a reduction collet (2) Max. diameter without a collet (3) 1 - Slot for data chip, 0 - Without slot for data chip 773-774 802-805 556-557 Spare Parts Designation DIN69871 40 MAXIN 20X 95 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* DIN69871 40 MAXIN 32X106 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* DIN69871 50 MAXIN 20X105 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS* DIN69871 50 MAXIN 32X100 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* DIN69871 50 MAXIN 32X135 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS* * Optional, to be ordered separately SETS SS KIT SK-MAXIN Contains a DIN 69871 Holder with MAXIN Power d range DCONWS Chuck and a Set of Collets with Various Bore Sizes Designation SS DCONWS Qty d Range KIT SK40 MAXIN 20X95 6 SK40 20.00 6 6,8,10,12,14,16 KIT SK40 MAXIN 32X106 7 SK40 32.00 7 6,8,10,12,16,20,25 KIT SK50 MAXIN 32X100 7 SK50 32.00 7 6,8,10,12,16,20,25 • Each kit contains one power chuck, a set of SC-SPR collets, extraction hook and wrench. 642 ISCAR
