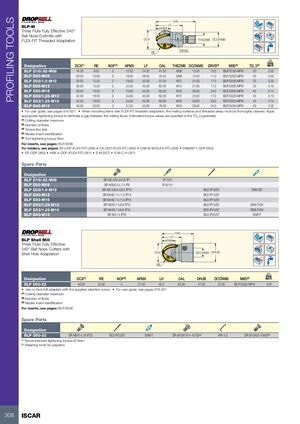

PROFILING TOOLS OAL LF BLP-M APMX Three Flute Fully Effective 240° Ball Nose Endmills with DCX THSZMS DCONMS FLEX-FIT Threaded Adaptation Rd° DRVS RE kg Designation DCX(1) RE NOF(2) APMX LF OAL THSZMS DCONMS DRVS(3) MIID(4) TQ_3(5) BLP D16/.62-M08 16.00 8.00 3 12.00 24.00 41.50 M08 13.00 10.0 BLR D160-MFW 20 0.02 BLP D20-M08 20.00 10.00 3 16.00 28.00 45.50 M08 13.00 11.0 BLR D200-MFW 20 0.03 BLP D25/1.0-M12 25.00 12.50 3 19.00 35.00 57.00 M12 21.00 17.0 BLR D250-MFW 33 0.03 BLP D30-M12 30.00 15.00 3 22.50 40.00 62.00 M12 21.00 17.0 BLR D300-MFW 33 0.10 BLP D30-M16 30.00 15.00 3 15.00 40.00 65.00 M16 28.00 24.0 BLR D300-MFW 40 0.14 BLP D32/1.25-M12 32.00 16.00 3 24.00 40.00 62.00 M12 23.00 17.0 BLR D320-MFW 33 0.10 BLP D32/1.25-M16 32.00 16.00 3 24.00 40.00 65.00 M16 29.00 25.0 BLR D320-MFW 40 0.14 BLP D40-M16 40.00 20.00 3 31.00 53.00 78.00 M16 29.00 24.0 BLR D400-MFW 40 0.25 • For user guide, see pages 616-621 • When mounting items with FLEX-FIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of flutes (3) Torque key size (4) Master insert identification (5) Tool tightening torque Nxm For inserts, see pages: BLR (609) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation BLP D16/.62-M08 SR M2.5X0.45-L6 IP7 IP-7/51 BLP D20-M08 SR M3X0.5-L7.4 IP9 IP-9/151 BLP D25/1.0-M12 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD BLP D30-M12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 BLP D30-M16 SR M4X0.7-L11.5 IP15 BLD IP15/S7 BLP D32/1.25-M12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH BLP D32/1.25-M16 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH BLP D40-M16 SR M5-14 IP20 BLD IP20/S7 SW6-T OAL LH BLP Shell Mill APMX Three Flute Fully Effective 240° Ball Nose Cutters with Shell Hole Adaptation DCX DCONMS DHUB Rd° RE kg Designation DCX(1) RE NOF(2) APMX LH OAL DHUB DCONMS MIID(3) BLP D50-22 50.00 25.00 3 37.50 50.0 83.00 47.00 22.00 BLR D500-MFW 0.61 • Use on face mill adapters with the supplied retention screw • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Number of flutes (3) Master insert identification For inserts, see pages: BLR (609) Spare Parts Designation BLP D50-22 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T SR M10X1X14-10700(a) HW 5.0 SR M10X20-10600(b) (a) Recommended tightening torque:22 Nxm (b) Retaining knob for adapters 308 ISCAR
