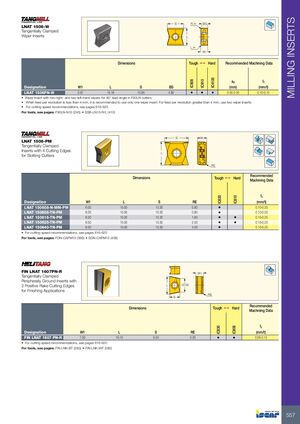

MILLING INSERTS S R.H BS LNAT 1506-W Tangentially Clamped Wiper Inserts L L.H W1 Dimensions Tough 1 Hard Recommended Machining Data IC4100 ap fz IC908 IC910 Designation W1 L S BS (mm) (mm/t) LNAT 1506PN-W 5.97 15.18 13.85 4.80 • • • 0.50-2.00 0.10-0.15 • Wiper insert with two right- and two left-hand wipers for 90° lead angle in F90LN cutters • When feed per revolution is less than 4 mm, it is recommended to use only one wiper insert. For feed per revolution greater than 4 mm, use two wiper inserts • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90LN-N15 (245) • SSB-LN15-R/L (410) S W1 LNAT 1506-PM Tangentially Clamped Inserts with 4 Cutting Edges L for Slotting Cutters RE Recommended Dimensions Tough 1 Hard Machining Data fz IC830 IC810 Designation W1 L S RE (mm/t) LNAT 150608-N-MM-PM 6.00 15.00 15.30 0.80 • 0.10-0.25 LNAT 150608-TN-PM 6.00 15.00 15.30 0.80 • 0.10-0.25 LNAT 150616-TN-PM 6.00 15.00 15.30 1.60 • • 0.10-0.25 LNAT 150625-TN-PM 6.00 15.00 15.30 2.50 • • 0.10-0.25 LNAT 150640-TN-PM 6.00 15.00 15.30 4.00 • 0.10-0.25 • For cutting speed recommendations, see pages 616-620 For tools, see pages: FDN-CAPM15 (399) • SDN-CAPM15 (408) FIN LNAT 1607PN-R W1 Tangentially Clamped Peripherally Ground Inserts with 2 Positive Rake Cutting Edges L 12.55 for Finishing Applications RE S Recommended Dimensions Tough 1 Hard Machining Data fz IC830 IC808 Designation W1 L S RE (mm/t) FIN LNAT 1607 PN-R 7.00 16.10 9.50 0.30 • • 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: FIN LNK-BT (280) • FIN LNK-INT (280) 557
