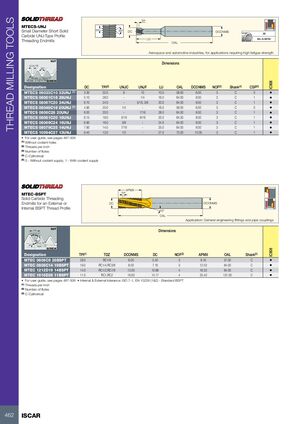

THREAD MILLING TOOLS TP MTECS-UNJ Small Diameter Short Solid TP 60° DC DCONMS 3B Carbide UNJ-Type Profile LU MIL-S-8879C Threading Endmills OAL Aerospace and automotive industries, for applications requiring high fatigue strength NUT Dimensions 5/16 TP 60° REmax 0.18042TP REmin 0.15011TP SCREW IC908 Designation DC TPI(2) UNJC UNJF LU OAL DCONMS NOF(3) Shank(4) CSP(5) MTECS 06033C10 32UNJ (1) 3.30 32.0 8 10 10.5 58.00 6.00 3 C 0 • MTECS 08051C16 28UNJ 5.10 28.0 - 1/4 16.0 64.00 8.00 3 C 1 • MTECS 08067C20 24UNJ 6.70 24.0 - 5/16, 3/8 20.0 64.00 8.00 3 C 1 • MTECS 06049C16 20UNJ (1) 4.90 20.0 1/4 - 16.0 58.00 6.00 3 C 0 • MTECS 0808C28 20UNJ 8.00 20.0 - 7/16 28.0 64.00 8.00 3 C 1 • MTECS 08061C20 18UNJ 6.15 18.0 5/16 9/16 20.0 64.00 8.00 3 C 1 • MTECS 08069C24 16UNJ 6.90 16.0 3/8 - 24.0 64.00 8.00 3 C 1 • MTECS 08079C25 14UNJ 7.90 14.0 7/16 - 25.0 64.00 8.00 3 C 1 • MTECS 10094C27 13UNJ 9.40 13.0 1/2 - 27.5 73.00 10.00 3 C 1 • • For user guide, see pages 497-506 (1) Without coolant holes (2) Threads per inch (3) Number of flutes (4) C-Cylindrical (5) 0 - Without coolant supply, 1 - With coolant supply APMX MTEC-BSPT TP Solid Carbide Threading Endmills for an External or DC DCONMS Internal BSPT Thread Profile 15° OAL Application: General engineering fittings and pipe couplings NUT TP Dimensions 27.5˚ 27.5˚ RE=0.137TP 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 28BSPT 28.0 RC1/8 6.00 5.40 3 8.16 57.00 C • MTEC 0808C14 19BSPT 19.0 RC1/4,RC3/8 8.00 7.16 3 12.03 64.00 C • MTEC 1212D19 14BSPT 14.0 RC1/2,RC7/8 12.00 10.88 4 16.33 84.00 C • MTEC 1616D28 11BSPT 11.0 RC1,RC2 16.00 14.17 4 25.40 101.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ISO 7-1, EN 10226 (1&2) - Standard BSPT (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 462 ISCAR
