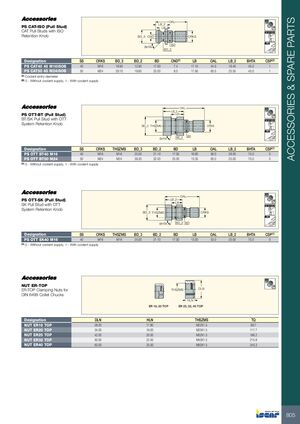

ACCESSORIES & SPARE PARTS OAL LB_2 PS CAT-ISO (Pull Stud) LB CAT Pull Studs with ISO 58-60 HRc Retention Knob BD_3 CND CRKS √N5 BD BHTA BD_2 Designation SS CRKS BD_3 BD_2 BD CND(1) LB OAL LB_2 BHTA CSP(2) PS CAT40 45 M16ISOB 40 M16 18.95 12.95 17.00 7.4 11.15 44.5 16.40 45.0 1 PS CAT50 45 M24ISOB 50 M24 29.10 19.60 25.00 8.0 17.95 65.5 25.55 45.0 1 (1) Coolant entry diameter (2) 0 - Without coolant supply, 1 - With coolant supply OAL LB_2 PS OTT-BT (Pull Stud) LB BT/SK Pull Stud with OTT 58-60 HRc System Retention Knob BD_3 THSZMS CRKS √N5 BD_2 BD BHTA Designation SS CRKS THSZMS BD_3 BD_2 BD LB OAL LB_2 BHTA CSP(1) PS OTT BT40 M16 40 M16 M16 25.00 21.10 17.00 16.60 56.0 28.00 75.0 0 PS OTT BT50 M24 50 M24 M24 39.30 32.00 25.00 13.35 65.0 25.00 75.0 0 (1) 0 - Without coolant supply, 1 - With coolant supply OAL PS OTT-SK (Pull Stud) LB_2 LB SK Pull Stud with OTT 58-60 HRc System Retention Knob BD_3 THSZMS CRKS √N5 BHTA BD_2 BD Designation SS CRKS THSZMS BD_3 BD_2 BD LB OAL LB_2 BHTA CSP(1) PS OTT SK40 M16 40 M16 M16 25.00 21.10 17.00 13.00 53.0 25.00 75.0 0 (1) 0 - Without coolant supply, 1 - With coolant supply NUT ER-TOP DLN ER-TOP Clamping Nuts for THSZMS DIN 6499 Collet Chucks HLN ER 16, 20 TOP ER 25, 32, 40 TOP Designation DLN HLN THSZMS TQ NUT ER16 TOP 28.00 17.80 M22X1.5 68.7 NUT ER20 TOP 34.00 19.00 M25X1.5 117.7 NUT ER25 TOP 42.00 20.00 M32X1.5 196.2 NUT ER32 TOP 50.00 22.50 M40X1.5 215.8 NUT ER40 TOP 63.00 25.00 M50X1.5 245.3 805
