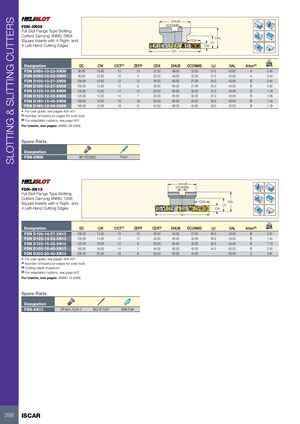

SLOTTING & SLITTING CUTTERS DHUB DCONMS FDN-XN09 Full Slot Flange Type Slotting Cutters Carrying XNMU 0904 OAL Square Inserts with 4 Right- and CDX LU 4 Left-Hand Cutting Edges CW DC kg Designation DC CW CICT(1) ZEFP CDX DHUB DCONMS LU OAL Arbor(2) FDN D080-10-22-XN09 80.00 10.00 10 10 22.50 48.00 22.00 27.0 40.00 A 0.40 FDN D080-12-22-XN09 80.00 12.00 10 5 22.50 48.00 22.00 27.0 40.00 A 0.43 FDN D100-10-27-XN09 100.00 10.00 12 12 26.00 60.00 27.00 25.0 40.00 B 0.64 FDN D100-12-27-XN09 100.00 12.00 12 6 26.00 60.00 27.00 25.0 40.00 B 0.92 FDN D125-10-32-XN09 125.00 10.00 14 14 33.00 65.00 32.00 31.0 45.00 B 1.19 FDN D125-12-32-XN09 125.00 12.00 14 7 33.00 65.00 32.00 31.0 45.00 B 1.08 FDN D160-10-40-XN09 160.00 10.00 18 18 45.00 80.00 40.00 35.0 50.00 B 1.45 FDN D160-12-40-XN09 160.00 12.00 18 9 45.00 80.00 40.00 35.0 50.00 B 1.78 • For user guide, see pages 426-431 (1) Number of inserts (or edges for solid tool) (2) For adaptation options, see page 432 For inserts, see pages: XNMU 09 (586) Spare Parts Designation FDN-XN09 SR 10508600 T-9/51 DHUB DCONMS FDN-XN13 Full Slot Flange Type Slotting Cutters Carrying XNMU 1306 CDX OAL Square Inserts with 4 Right- and LU 4 Left-Hand Cutting Edges CW DC kg Designation DC CW CICT(1) ZEFP CDX(2) DHUB DCONMS LU OAL Arbor(3) FDN D100-14-27-XN13 100.00 14.00 10 10 26.00 55.00 27.00 26.5 40.00 B 0.61 FDN D125-14-32-XN13 125.00 14.00 12 12 33.00 65.00 32.00 30.5 45.00 B 1.04 FDN D125-16-32-XN13 125.00 16.00 12 6 33.00 65.00 32.00 30.5 45.00 B 1.13 FDN D160-18-40-XN13 160.00 18.00 14 7 45.00 80.00 40.00 44.0 60.00 B 2.24 FDN D200-20-40-XN13 200.00 20.00 16 8 53.00 92.00 40.00 - 63.00 C 3.81 • For user guide, see pages 426-431 (1) Number of inserts (or edges for solid tool) (2) Cutting depth maximum (3) For adaptation options, see page 432 For inserts, see pages: XNMU 13 (586) Spare Parts Designation FDN-XN13 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH 398 ISCAR
