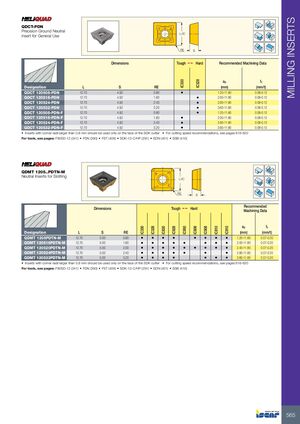

MILLING INSERTS QDCT-PDN 1 4 Precision Ground Neutral L/IC insert for General Use 2 3 RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC330 IC328 Designation L S RE (mm) (mm/t) QDCT 120508-PDN 12.70 4.92 0.80 • 1.20-11.80 0.08-0.12 QDCT 120516-PDN 12.70 4.92 1.60 • 2.00-11.80 0.08-0.12 QDCT 120524-PDN 12.70 4.92 2.40 • 2.80-11.80 0.08-0.12 QDCT 120532-PDN 12.70 4.92 3.20 • 3.60-11.80 0.08-0.12 QDCT 120508-PDN-F 12.70 4.92 0.80 • 1.20-11.80 0.08-0.12 QDCT 120516-PDN-F 12.70 4.92 1.60 • 2.00-11.80 0.08-0.12 QDCT 120524-PDN-F 12.70 4.92 2.40 • 2.80-11.80 0.08-0.12 QDCT 120532-PDN-F 12.70 4.92 3.20 • 3.60-11.80 0.08-0.12 • Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90SD-12 (241) • FDN (390) • FST (409) • SDK-12-C/HP (291) • SDN (401) • SSB (410) QDMT 1205..PDTN-M 4 3 Neutral Inserts for Slotting L/IC 2 1 RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC330 IC328 IC830 IC928 IC950 IC808 IC908 IC810 IC910 Designation L S RE (mm) (mm/t) QDMT 1205PDTN-M 12.70 5.00 0.80 • • • • • • • • 1.20-11.80 0.07-0.20 QDMT 120516PDTN-M 12.70 5.00 1.60 • • • • • • • • 2.00-11.80 0.07-0.20 QDMT 120520PDTN-M 12.70 5.00 2.00 • • • • • • • • • 2.40-11.80 0.07-0.20 QDMT 120524PDTN-M 12.70 5.00 2.40 • • • • • • • 2.80-11.80 0.07-0.20 QDMT 120532PDTN-M 12.70 5.00 3.20 • • • • • • • 3.60-11.80 0.07-0.20 • Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90SD-12 (241) • FDN (390) • FST (409) • SDK-12-C/HP (291) • SDN (401) • SSB (410) 565
