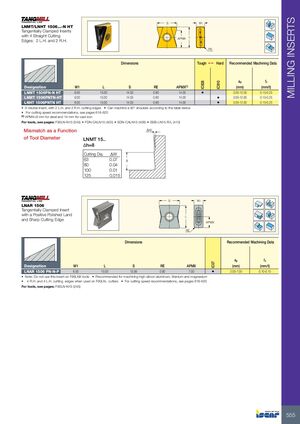

MILLING INSERTS S W1 LNMT/LNHT 1506...-N HT Tangentially Clamped Inserts with 4 Straight Cutting L APMX Edges: 2 L.H. and 2 R.H. RE Dimensions Tough 1 Hard Recommended Machining Data ap fz IC928 IC910 Designation W1 L S RE APMX(1) (mm) (mm/t) LNMT 1506PN-N HT 6.00 15.00 14.03 0.80 14.00 • 3.00-12.00 0.15-0.25 LNMT 1506PNTN-HT 6.00 15.00 14.03 0.80 14.00 • 3.00-12.00 0.15-0.25 LNHT 1506PNTN HT 6.00 15.00 14.03 0.80 14.00 • 3.00-12.00 0.15-0.25 • A neutral insert, with 2 L.H. and 2 R.H. cutting edges • Can machine a 90° shoulder according to the table below • For cutting speed recommendations, see pages 616-620 (1) APMX=9 mm for steel and 14 mm for cast iron For tools, see pages: F90LN-N15 (245) • FDN-CALN15 (400) • SDN-CALN15 (409) • SSB-LN15-R/L (410) Mismatch as a Function ∆W of Tool Diameter LNMT 15.. Δh=8 Cutting Dia. ∆W 63 0.07 8 80 0.04 100 0.01 125 0.015 S W1 LNAR 1506 Tangentially Clamped Insert with a Positive Polished Land L and Sharp Cutting Edge APMX RE Dimensions Recommended Machining Data ap fz IC07 Designation W1 L S RE APMX (mm) (mm/t) LNAR 1506 PN-N-P 6.00 15.00 13.56 0.80 7.00 • 2.00-7.00 0.10-0.15 • Note: Do not use this insert on F86LNX tools • Recommended for machining high silicon aluminum, titanium and magnesium • 4 R.H. and 4 L.H. cutting edges when used on F90LN.. cutters • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90LN-N15 (245) 555
