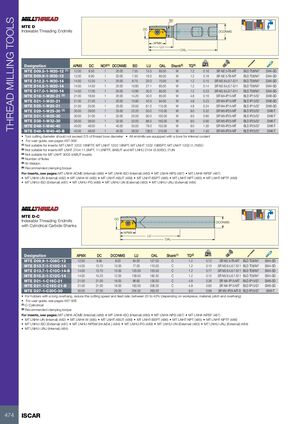

THREAD MILLING TOOLS BD MTE D DC Indexable Threading Endmills DCONMS APMX LU OAL kg Designation APMX DC NOF(4) DCONMS BD LU OAL Shank(5) TQ(6) MTE D09.5-1-W20-12 (1) 12.00 9.50 1 20.00 7.50 15.5 85.00 W 1.2 0.16 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D09.9-1-W20-12 12.00 9.90 1 20.00 7.50 16.0 85.00 W 1.2 0.16 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D12.2-1-W20-14 14.00 12.20 1 20.00 8.75 20.0 75.00 W 1.2 0.15 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D14.5-1-W20-14 14.00 14.50 1 20.00 10.80 27.1 85.00 W 1.2 0.14 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D17.0-1-W20-14 14.00 17.00 1 20.00 12.80 30.0 85.00 W 1.2 0.23 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D18-1-W20-21 (2) 21.00 18.50 1 20.00 14.20 30.0 85.00 W 4.8 0.16 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D21-1-W20-21 21.00 21.00 1 20.00 15.90 40.0 94.00 W 4.8 0.23 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D25-1-W20-21 21.00 25.00 1 20.00 20.00 61.0 115.00 W 4.8 0.24 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D29-1-W25-30 (3) 30.00 29.00 1 25.00 22.20 50.0 110.00 W 9.0 0.32 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D31-1-W25-30 30.00 31.00 1 25.00 25.00 90.0 150.00 W 9.0 0.60 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D38-1-W32-30 30.00 38.00 1 32.00 32.00 86.0 150.00 W 9.0 0.90 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D48-1-W40-40 40.00 48.00 1 40.00 35.00 78.0 153.00 W 9.0 1.30 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D48-1-W40-40-B 40.00 48.00 1 40.00 36.50 138.0 210.00 W 9.0 1.50 SR M5-IP25-MT BLD IP25/S7 SW6-T • Tool cutting diameter should not exceed 2/3 of thread bore diameter • All endmills are equipped with a bore for internal coolant • For user guide, see pages 497-506 (1) Not suitable for inserts: MT LNHT 1202 18NPTF, MT LNHT 1202 18NPT, MT LNHT 1202 19BSPT, MT LNHT 1202 I1.75ISO (2) Not suitable for inserts:MT LNHT 2104 11.5NPT, 11.5NPTF, 8ABUT and MT LNHU 2104 I3.50ISO, I7UN (3) Not suitable for MT LNHT 3005 4ABUT inserts (4) Number of flutes (5) W-Weldon (6) Recommended clamping torque For inserts, see pages: MT LNH#-ACME (Internal) (488) • MT LNH#-ISO (Internal) (480) • MT LNH#-NPS (487) • MT LNH#-NPSF (487) • MT LNH#-UN (Internal) (482) • MT LNH#-W (485) • MT LNHT-ABUT (488) • MT LNHT-BSPT (486) • MT LNHT-NPT (485) • MT LNHT-NPTF (486) • MT LNHU-ISO (External) (481) • MT LNHU-PG (489) • MT LNHU-UN (External) (483) • MT LNHU-UNJ (External) (484) MTE D-C DC Indexable Threading Endmills DCONMS with Cylindrical Carbide Shanks APMX LU OAL kg Designation APMX DC DCONMS LU OAL Shank(1) TQ(2) MTE D09.9-1-C08C-12 12.00 9.90 8.00 94.00 127.00 C 1.2 0.12 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D13.7-1-C10C-14 14.00 13.70 10.00 77.00 110.00 C 1.2 0.10 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D13.7-1-C10C-14-B 14.00 13.70 10.00 120.00 153.50 C 1.2 0.17 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D15.2-1-C12C-14 14.00 15.20 12.00 139.00 182.30 C 1.2 0.12 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MTE D21-1-C16C-21 21.00 21.00 16.00 86.60 130.00 C 4.8 0.28 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D21-1-C16C-21-B 21.00 21.00 16.00 163.00 206.30 C 4.8 0.60 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D27-1-C20C-30 30.00 27.00 20.00 204.00 263.00 C 9.0 0.99 SR M5-IP25-MT-S BLD IP25/S7 SW6-T • For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang) • For user guide, see pages 497-506 (1) C-Cylindrical (2) Recommended clamping torque For inserts, see pages: MT LNH#-ACME (Internal) (488) • MT LNH#-ISO (Internal) (480) • MT LNH#-NPS (487) • MT LNH#-NPSF (487) • MT LNH#-UN (Internal) (482) • MT LNH#-W (485) • MT LNHT-ABUT (488) • MT LNHT-BSPT (486) • MT LNHT-NPT (485) • MT LNHT-NPTF (486) • MT LNHU-ISO (External) (481) • MT LNHU-NPSM (Int.&Ext.) (484) • MT LNHU-PG (489) • MT LNHU-UN (External) (483) • MT LNHU-UNJ (External) (484) • MT LNHU-UNJ (Internal) (484) 474 ISCAR
