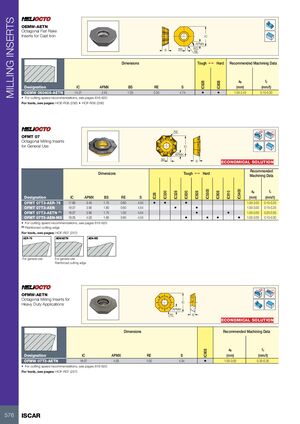

MILLING INSERTS OEMW-AETN Octagonal Flat Rake Inserts for Cast Iron IC APMX BS 45° S RE Dimensions Tough 1 Hard Recommended Machining Data ap fz IC928 IC808 Designation IC APMX BS RE S (mm) (mm/t) OEMW 060405-AETN 14.27 2.45 1.05 0.50 4.74 • • 1.00-2.45 0.15-0.30 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HOE-R06 (256) • HOF-R06 (256) RE Rd° OFMT 07 Octagonal Milling Inserts for General Use IC APMX BS S ECONOMICAL SOLUTION Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5500 IC5400 IC330 IC328 IC830 IC928 IC808 IC910 IC28 Designation IC APMX BS RE S (mm) (mm/t) OFMT 07T3-AER-76 17.80 3.40 1.75 0.60 4.55 • • • 1.00-3.00 0.15-0.25 OFMT 07T3-AEN 18.07 3.90 1.60 0.60 4.54 • • 1.00-3.00 0.15-0.25 OFMT 07T3-AETN (1) 18.07 3.90 1.75 1.00 4.54 • • 1.00-3.00 0.20-0.35 OFMT 07T3-AEN-MS 18.05 4.00 1.60 0.80 4.55 • • • • 1.00-3.00 0.10-0.30 • For cutting speed recommendations, see pages 616-620 (1) Reinforced cutting edge For tools, see pages: HOF-R07 (257) AER-76 AEN/AETN AEN-MS For general use For general use Reinforced cutting edge Rd° OFMW-AETN Octagonal Milling Inserts for IC Heavy Duty Applications APMX RE S ECONOMICAL SOLUTION Dimensions Recommended Machining Data ap fz IC908 Designation IC APMX RE S (mm) (mm/t) OFMW 07T3-AETN 18.07 4.00 1.00 4.54 • 1.00-3.00 0.20-0.35 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HOF-R07 (257) 576 ISCAR
