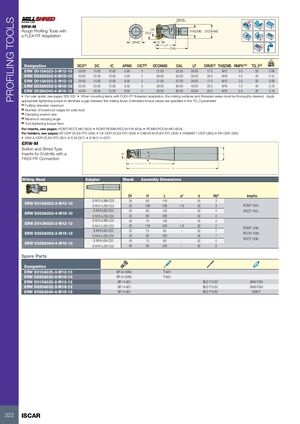

PROFILING TOOLS DRVS ERW-M DC Rough Profiling Tools with DCX THSZMS DCONMS a FLEX-FIT Adaptation DRVS IC LF Rd° OAL kg Designation DCX(1) DC IC APMX CICT(2) DCONMS OAL LF DRVS(3) THSZMS RMPX°(4) TQ_3(5) ERW D015A025-3-M12-10 25.00 15.00 10.00 5.00 3 21.00 52.00 30.00 17.0 M12 3.0 33 0.06 ERW D022A032-4-M16-10 32.00 22.00 10.00 5.00 4 29.00 55.00 30.00 25.0 M16 4.0 40 0.12 ERW D013A025-2-M12-12 25.00 13.00 12.00 6.00 2 21.00 57.00 35.00 17.0 M12 2.0 33 0.08 ERW D020A032-3-M16-12 32.00 20.00 12.00 6.00 3 29.00 65.00 40.00 25.0 M16 7.0 40 0.15 ERW D028A040-4-M16-12 40.00 28.00 12.00 6.00 4 29.00 65.00 40.00 25.0 M16 5.0 40 0.19 • For user guide, see pages 329-332 • When mounting items with FLEX-FIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size (4) Maximum ramping angle (5) Tool tightening torque Nxm For inserts, see pages: RCMT/RCCT-MO (603) • RCMT/RCMW/RCCW-FW (604) • RCMW/RCCW-MO (603) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) ERW-M Button and Shred Type Inserts for Endmills with a D1 a° d FKEX-FIT Connection H L Milling Head Adapter Shank Assembly Dimensions D1 H L aº d Rdº Inserts S M12-L086-C25 25 60 116 - 25 3 ERW D015A025-3-M12-10 S M12-L200-C32 25 108 230 1.9 32 3 RCMT 1004... S M16-L95-C32 32 65 125 - 32 4 RCCT 1004... ERW D022A032-4-M16-10 S M16-L230-C32 32 80 260 - 32 4 S M12-L086-C25 25 70 126 - 25 2 ERW D013A025-2-M12-12 S M12-L200-C32 25 118 240 1.8 32 2 RCMT 1206... S M16-L95-C32 32 75 85 - 32 7 ERW D020A032-3-M16-12 RCCW 1206... S M16-L230-C32 32 90 220 - 32 7 RCCT 1206... S M16-L95-C32 40 75 85 - 32 5 ERW D028A040-4-M16-12 S M16-L230-C32 40 90 220 - 32 5 Spare Parts Designation ERW D015A025-3-M12-10 SR 34-506/L T-9/51 ERW D022A032-4-M16-10 SR 34-506/L T-9/51 ERW D013A025-2-M12-12 SR 14-601 BLD T15/S7 SW6-T-SH ERW D020A032-3-M16-12 SR 14-601 BLD T15/S7 SW6-T-SH ERW D028A040-4-M16-12 SR 14-601 BLD T15/S7 SW6-T 322 ISCAR
