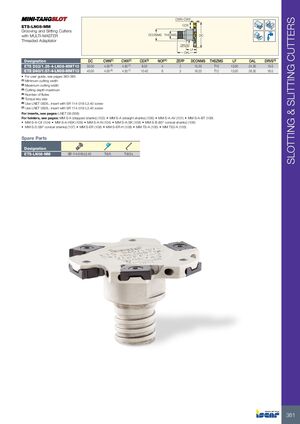

SLOTTING & SLITTING CUTTERS CWN-CWX CDX ETS-LN08-MM Grooving and Slitting Cutters with MULTI-MASTER DCONMS THSZMS DC Threaded Adaptator DRVS LF OAL Designation DC CWN(1) CWX(2) CDX(3) NOF(4) ZEFP DCONMS THSZMS LF OAL DRVS(5) ETS D32/1.26-4-LN08-MMT10 32.00 4.00 (6) 4.50 (7) 8.20 4 2 15.20 T10 13.00 24.30 13.0 ETS D40/1.57-4-LN08-MMT12 40.00 4.00 (6) 4.50 (7) 10.40 6 3 18.20 T12 13.00 26.30 16.0 • For user guide, see pages 383-385 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Number of flutes (5) Torque key size (6) Use LNET 0826.. insert with SR 114-018-L3.40 screw (7) Use LNET 0828.. insert with SR 114-018-L3.40 screw For inserts, see pages: LNET 08 (558) For holders, see pages: MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation ETS-LN08-MM SR 114-018-L3.40 T-6/5 T-6/3-L 381
