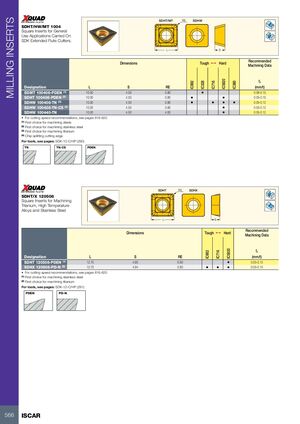

Фрезерные инструменты Iscar 2026 - страница 568

MILLING INSERTS SDHT/MT RE SDHW SDHT/HW/MT 1004 Square Inserts for General Use Applications Carried On SDK Extended Flute Cutters. L S Recommended Dimensions Tough 1 Hard Machining Data fz IC5820 IC882 IC328 IC716 IC380 Designation L S RE (mm/t) SDMT 100408-PDEN (1) 10.00 4.50 0.80 • 0.08-0.15 SDHT 100408-PDEN (2) 10.00 4.50 0.80 • • 0.05-0.10 SDHW 100408-TN (3) 10.00 4.50 0.80 • • • • 0.05-0.12 SDHW 100408-TN-CS (4) 10.00 4.50 0.80 • 0.05-0.12 SDHW 100440-TN 10.00 4.50 4.00 • 0.05-0.12 • For cutting speed recommendations, see pages 616-620 (1) First choice for machining steels (2) First choice for machining stainless steel (3) First choice for machining titanium (4) Chip splitting cutting edge For tools, see pages: SDK-10-C/HP (290) TN TN-CS PDEN SDHT RE SDHX SDHT/X 120508 Square Inserts for Machining Titanium, High Temperature Alloys and Stainless Steel L S Recommended Dimensions Tough 1 Hard Machining Data fz IC5820 IC882 IC716 Designation L S RE (mm/t) SDHT 120508-PDEN (1) 12.70 4.90 0.80 • 0.05-0.15 SDHX 120508-PD-N (2) 12.70 4.94 0.80 • • • 0.05-0.15 • For cutting speed recommendations, see pages 616-620 (1) First choice for machining stainless steel (2) First choice for machining titanium For tools, see pages: SDK-12-C/HP (291) PDEN PD-N 566 ISCAR
