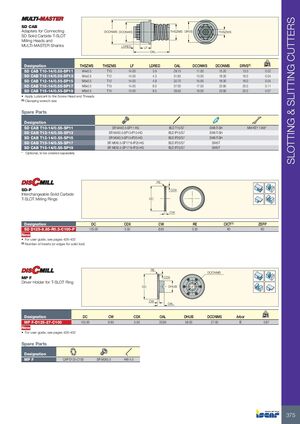

SLOTTING & SLITTING CUTTERS SD CAB Adapters for Connecting DCONMS DCONWS THSZMS DRVS THSZWS SD Solid Carbide T-SLOT Milling Heads and MULTI-MASTER Shanks LDRED LF OAL kg Designation THSZWS THSZMS LF LDRED OAL DCONWS DCONMS DRVS(1) SD CAB T10-14/0.55-SP11 M4x0.5 T10 14.00 3.9 29.15 11.00 15.20 13.0 0.02 SD CAB T12-14/0.55-SP13 M4x0.5 T12 14.00 4.3 31.65 13.00 18.30 16.0 0.04 SD CAB T12-14/0.55-SP15 M5x0.5 T12 14.00 4.9 32.70 15.00 18.30 16.0 0.04 SD CAB T15-14/0.55-SP17 M6x0.5 T15 14.00 6.0 37.00 17.00 23.90 20.0 0.11 SD CAB T15-14/0.55-SP19 M6x0.5 T15 14.00 8.5 39.50 19.00 23.90 20.0 0.07 • Apply Lubricant to the Screw Head and Threads (1) Clamping wrench size Spare Parts Designation SD CAB T10-14/0.55-SP11 SR M4X0.5-SP11 HG BLD T15/S7 SW6-T-SH MM KEY 13X8* SD CAB T12-14/0.55-SP13 SR M4X0.5-SP13-IP15-HG BLD IP15/S7 SW6-T-SH SD CAB T12-14/0.55-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD CAB T15-14/0.55-SP17 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T SD CAB T15-14/0.55-SP19 SR M6X0.5-SP1719-IP25-HG BLD IP25/S7 SW6-T * Optional, to be ordered separately RE SD-P CDX Interchangeable Solid Carbide T-SLOT Milling Rings DC CW Designation DC CDX CW RE CICT(1) ZEFP SD D125-8.85-R0.3-C100-P 125.00 5.50 8.85 0.30 60 60 New • For user guide, see pages 426-432 (1) Number of inserts (or edges for solid tool) RE DCONMS MP F CDX Driver Holder for T-SLOT Ring DC DHUB CW OAL kg Designation DC CW CDX OAL DHUB DCONMS Arbor MP F-D125-27-C100 125.00 8.85 5.50 33.85 58.00 27.00 B 0.87 New • For user guide, see pages 426-432 Spare Parts Designation MP F CAP D125-C100 SR M3X5.5 HW 4.0 375
