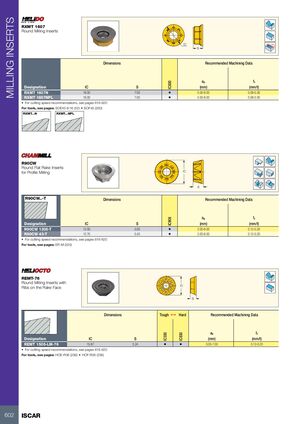

MILLING INSERTS RXMT 1607 Round Milling Inserts IC Rd° S Dimensions Recommended Machining Data ap fz IC830 Designation IC S (mm) (mm/t) RXMT 1607N 16.00 7.00 • 0.50-8.00 0.08-0.30 RXMT 1607NPL 16.00 7.00 • 0.50-8.00 0.08-0.30 • For cutting speed recommendations, see pages 616-620 For tools, see pages: SOE45 8/16 (52) • SOF45 (260) RXMT...N RXMT...NPL R90CW Round Flat Rake Inserts for Profile Milling IC S R90CW..-T Dimensions Recommended Machining Data ap fz IC908 Designation IC S (mm) (mm/t) R90CW 1205-T 12.00 5.00 • 2.00-6.00 0.12-0.20 R90CW 43-T 12.70 5.40 • 2.00-6.00 0.12-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: ER-M (320) REMT-76 Round Milling Inserts with 1 8 2 IC Ribs on the Rake Face 7 3 6 4 5 S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC330 IC830 Designation IC S (mm) (mm/t) REMT 1505-LM-76 15.87 5.24 • • 3.00-7.00 0.12-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HOE-R06 (256) • HOF-R06 (256) 602 ISCAR
