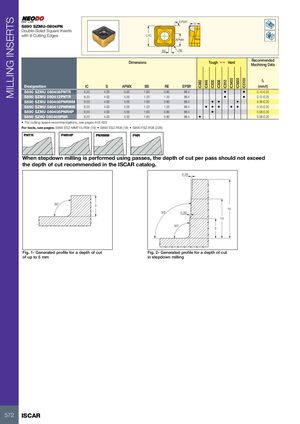

MILLING INSERTS EPSR S S890 SZMU-0804PN Double-Sided Square Inserts with 8 Cutting Edges L/IC APMX BS RE Recommended Dimensions Tough 1 Hard Machining Data fz IC5400 IC5600 IC5100 IC882 IC845 IC830 IC808 IC810 Designation IC S APMX BS RE EPSR (mm/t) S890 SZMU 080408PNTR 8.20 4.00 5.00 1.60 0.80 88.4 • • 0.10-0.25 S890 SZMU 080412PNTR 8.20 4.00 5.00 1.20 1.20 88.4 • • 0.12-0.25 S890 SZMU 080408PNRMM 8.20 4.00 5.00 1.60 0.80 88.4 • • • 0.08-0.20 S890 SZMU 080412PNRMM 8.20 4.00 5.00 1.20 1.20 88.4 • • • • • 0.10-0.25 PNTR4.00 5.00 PNRHP1.60 S890 SZMU 080408PNRHP 8.20 0.80 88.4 • 0.08-0.20 S890 SZHU 080408PNR 8.20 4.00 5.00 1.60 0.80 88.4 • 0.08-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: S890 ESZ-MMT15-R08 (19) • S890 ESZ-R08 (18) • S890 FSZ-R08 (228) PNTR PNRHP PNRMM PNR When PNRMM stepdown milling is performed using passes, the depth of cut per pass should not exceed PNR the depth of cut recommended in the ISCAR catalog. 0.28 90˚ 5 15 93˚ 0.28 10 90˚ 5 Fig. 1- Generated profile for a depth of cut Fig. 2- Generated profile for a depth of cut of up to 5 mm in stepdown milling 572 ISCAR
