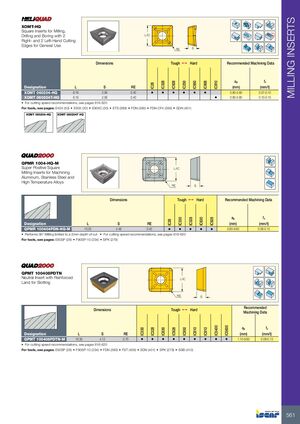

MILLING INSERTS XOMT-HQ Square Inserts for Milling, Rd° Drilling and Boring with 2 L/IC Right- and 2 Left-Hand Cutting Edges for General Use RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC328 IC928 IC250 IC950 IC908 IC910 IC28 Designation L S RE (mm) (mm/t) XOMT 060204-HQ 6.16 2.56 0.40 • • • • • • 0.80-5.80 0.07-0.10 XOMT 060204T-HQ 6.16 2.56 0.40 • 0.80-5.80 0.10-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E45X (53) • E90X (20) • E90XC (50) • ETS (389) • FDN (390) • FDN-CF4 (395) • SDN (401) XOMT 060204-HQ XOMT 060204T HQ QPMR 1004-HQ-M Super Positive Square L/IC Milling Inserts for Machining Aluminum, Stainless Steel and High Temperature Alloys RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC330 IC328 IC830 IC928 IC28 Designation L S RE (mm) (mm/t) QPMR 100404PDN-HQ-M 10.35 4.48 0.40 • • • • • 0.80-9.60 0.08-0.15 • Performs 90° Milling limited to a 2mm depth of cut • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90SP (28) • F90SP-10 (234) • SPK (279) QPMT 100408PDTN Neutral Insert with Reinforced L/IC Land for Slotting RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5600 IC330 IC328 IC830 IC928 IC950 IC810 IC910 Designation L S RE (mm) (mm/t) QPMT 100408PDTN-M 10.35 4.12 0.70 • • • • • • • • • 1.10-9.60 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90SP (28) • F90SP-10 (234) • FDN (390) • FST (409) • SDN (401) • SPK (279) • SSB (410) 561
