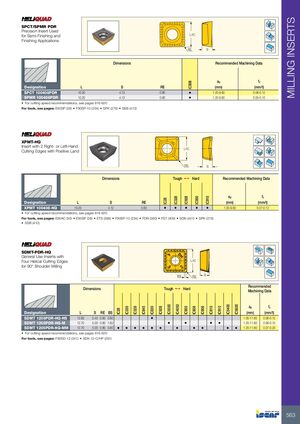

MILLING INSERTS SPCT/SPMR PDR Precision Insert Used for Semi-Finishing and L/IC Finishing Applications RE S Dimensions Recommended Machining Data ap fz IC808 Designation L S RE (mm) (mm/t) SPCT 100408PDR 10.20 4.13 0.80 • 1.20-9.60 0.08-0.12 SPMR 100408PDR 10.20 4.13 0.80 • 1.20-9.60 0.05-0.10 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90SP (28) • F90SP-10 (234) • SPK (279) • SSB (410) XPMT-HQ HQ Insert with 2 Right- or Left-Hand L/IC Cutting Edges with Positive Land HQ RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC328 IC928 IC950 IC910 IC28 Designation L S RE (mm) (mm/t) XPMT 100408-HQ 10.20 4.12 0.60 • • • • • 1.00-9.60 0.07-0.12 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90AC (50) • E90SP (28) • ETS (389) • F90SP-10 (234) • FDN (390) • FST (409) • SDN (401) • SPK (279) • SSB (410) SDMT-PDR-HQ General Use Inserts with Four Helical Cutting Edges L/IC for 90° Shoulder Milling BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5500 IC4050 IC5400 IC5600 IC330 IC328 IC845 IC830 IC928 IC950 IC808 IC908 IC810 IC910 IC28 Designation L S RE BS (mm) (mm/t) SDMT 1205PDR-HQ-HS 12.60 5.40 0.60 0.80 • 1.00-11.80 0.08-0.15 SDMT 1205PDR-HQ-M 12.70 5.00 0.80 1.60 • • • • 1.20-11.80 0.08-0.15 SDMT 1205PDR-HQ-MM 12.70 5.00 0.80 0.80 • • • • • • • • • • • 1.20-11.80 0.07-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90SD-12 (241) • SDK-12-C/HP (291) 563
