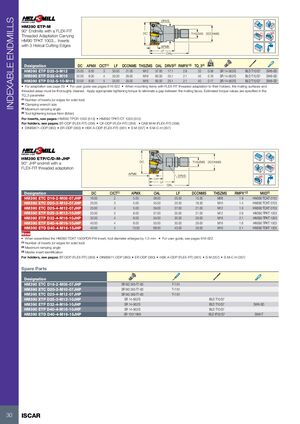

INDEXABLE ENDMILLS DRVS HM390 ETP-M 90° Endmills with a FLEX-FIT DC THSZMS DCONMS Rd° Threaded Adaptation Carrying HM90 TPKT 1003... Inserts with 3 Helical Cutting Edges APMX LF OAL kg Designation DC APMX CICT(1) LF DCONMS THSZMS OAL DRVS(2) RMPX°(3) TQ_3(4) HM390 ETP D25-3-M12 25.00 8.00 3 35.00 21.00 M12 57.00 17.1 2.9 33 0.08 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-4-M16 32.00 8.00 4 35.00 29.00 M16 60.00 25.1 2.1 40 0.16 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-5-10-M16 32.00 8.00 5 35.00 29.00 M16 60.00 25.1 2.1 40 0.17 SR 14-562/S BLD T10/S7 SW6-SD • For adaptation see page 59 • For user guide see pages 616-622 • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of inserts (or edges for solid tool) (2) Clamping wrench size (3) Maximum ramping angle (4) Tool tightening torque Nxm (lbfxin) For inserts, see pages: HM390 TPCR 1003 (513) • HM390 TPKT/CT 1003 (512) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) HM390 ETP/C/D-M-JHP 90° JHP endmill with a DC THSZMS DCONMS Rd° FLEX-FIT threaded adaptation APMX DRVS LH LF OAL Designation DC CICT(1) APMX OAL LF DCONMS THSZMS RMPX°(2) MIID(3) HM390 ETC D16-2-M08-07JHP 16.00 2 5.00 38.00 20.50 15.30 M08 1.9 HM390 TCKT 0703 HM390 ETC D20-3-M10-07JHP 20.00 3 5.00 45.50 25.50 18.30 M10 1.4 HM390 TCKT 0703 HM390 ETC D25-4-M12-07JHP 25.00 4 5.00 59.00 37.00 21.00 M12 1.0 HM390 TCKT 0703 HM390 ETP D25-3-M12-10JHP 25.00 3 8.00 57.00 35.00 21.00 M12 2.9 HM390 TPKT 1003 HM390 ETP D32-4-M16-10JHP 32.00 4 8.00 55.00 30.00 29.00 M16 2.1 HM390 TPKT 1003 HM390 ETP D40-4-M16-10JHP 40.00 4 8.00 55.00 30.00 29.00 M16 1.6 HM390 TPKT 1003 HM390 ETD D40-4-M16-15JHP 40.00 4 13.00 68.00 43.00 29.00 M16 2.1 HM390 TDKT 1505 New • When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by 1.0 mm • For user guide, see pages 616-622 (1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (3) Master insert identification For holders, see pages: BT-ODP (FLEX-FIT) (359) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) Spare Parts Designation HM390 ETC D16-2-M08-07JHP SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-M10-07JHP SR M2.5X5-T7-60 T-7/51 HM390 ETC D25-4-M12-07JHP SR M2.5X6-T7-60 T-7/51 HM390 ETP D25-3-M12-10JHP SR 14-562/S BLD T10/S7 HM390 ETP D32-4-M16-10JHP SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D40-4-M16-10JHP SR 14-562/S BLD T10/S7 HM390 ETD D40-4-M16-15JHP SR 10511869 BLD IP20/S7 SW6-T 30 ISCAR
