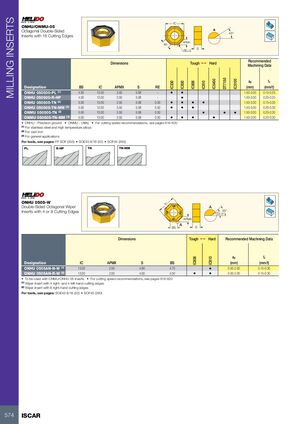

MILLING INSERTS IC ONHU/ONMU-05 Octagonal Double-Sided A 45° Inserts with 16 Cutting Edges APMX BS S RE / A Recommended Dimensions Tough 1 Hard Machining Data DT7150 ap fz IC5400 IC5100 IC330 IC830 IC808 IC810 Designation BS IC APMX S RE (mm) (mm/t) ONHU 050500-PL (1) 4.50 13.00 3.50 5.08 - • • 1.50-3.00 0.15-0.20 ONHU 050500-R-HP 4.50 13.00 3.50 5.08 - • 1.50-3.00 0.20-0.25 ONHU 050505-TN (2) 5.00 13.00 3.50 5.08 0.50 • • • • 1.50-3.00 0.15-0.30 ONHU 050505-TN-MM (3) 5.00 13.00 3.50 5.08 0.50 • • • 1.50-3.00 0.20-0.30 ONMU 050505-TN (2) 5.00 13.00 3.50 5.08 0.50 • • • 1.50-3.00 0.20-0.30 ONMU 050505-TN-MM (3) 5.00 13.00 3.50 5.08 0.50 • • • • 1.50-3.00 0.20-0.30 • ONHU - Precision ground • ONMU - Utility • For cutting speed recommendations, see pages 616-620 (1) For stainless steel and high temperature alloys (2) For cast iron (3) For general applications For tools, see pages: FF SOF (355) • SOE45 8/16 (52) • SOF45 (260) PL R-HP TN TN-MM ONHU 0505-W IC Double-Sided Octagonal Wiper A Inserts with 4 or 8 Cutting Edges 45° 22.5° APMX A BS S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC808 IC810 Designation IC APMX S BS (mm) (mm/t) ONHU 0505AN-N-W (1) 13.00 2.00 4.90 4.70 • 0.50-2.00 0.15-0.30 ONHU 0505AN-R-W (2) 13.00 2.00 4.90 4.50 • • 0.50-2.00 0.15-0.30 • To be used with ONMU/ONHU 05 inserts • For cutting speed recommendations, see pages 616-620 (1) Wiper insert with 4 right- and 4 left-hand cutting edges (2) Wiper insert with 8 right-hand cutting edges For tools, see pages: SOE45 8/16 (52) • SOF45 (260) 574 ISCAR
