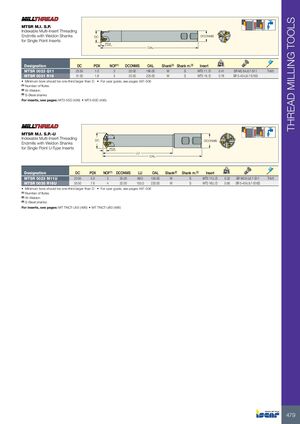

THREAD MILLING TOOLS MTSR M.I. S.P. Indexable Multi-Insert Threading Endmills with Weldon Shanks DC DCONMS for Single Point Inserts PDX OAL kg Designation DC PDX NOF(1) DCONMS OAL Shank(2) Shank m.(3) Insert MTSR 0023 Q11 23.50 1.0 3 20.00 190.00 W S MT3 11..D 0.41 SR M2.6-L6.7-S11 T-8/5 MTSR 0031 R16 31.00 1.8 3 25.00 225.00 W S MT3 16..D 0.76 SR 5-40-L9.7-S16S • Minimum bore should be one-third larger than D • For user guide, see pages 497-506 (1) Number of flutes (2) W-Weldon (3) S-Steel shanks For inserts, see pages: MT3-55D (496) • MT3-60D (495) MTSR M.I. S.P.-U Indexable Multi-Insert Threading DC DCONMS Endmills with Weldon Shanks for Single Point U-Type Inserts PDX LU OAL kg Designation DC PDX NOF(1) DCONMS LU OAL Shank(2) Shank m.(3) Insert MTSR 0023 M11U 23.00 5.0 3 25.00 88.0 150.00 W S MT3 11U..D 0.32 SR M2.6-L6.7-S11 T-8/5 MTSR 0035 R16U 35.50 7.6 4 32.00 155.0 220.00 W S MT3 16U..D 0.95 SR 5-40-L9.7-S16S • Minimum bore should be one-third larger than D • For user guide, see pages 497-506 (1) Number of flutes (2) W-Weldon (3) S-Steel shanks For inserts, see pages: MT TNCT-U55 (496) • MT TNCT-U60 (496) 479
